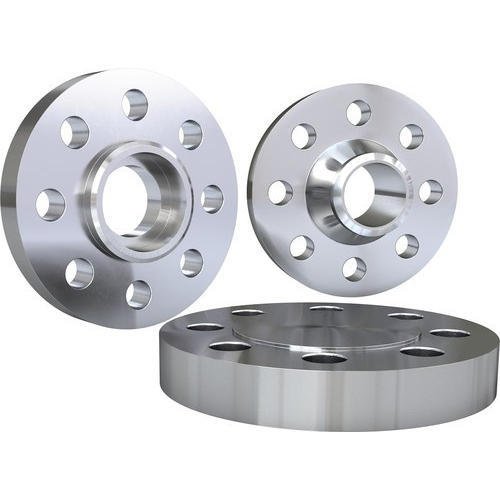

CLASS 175 Flanges

B16.47 SS Blind Flanges, ASME B16.48 Stainless Steel Slip On Flange,Contact For Best Gaskets For CLASS 175 Flanges, ANSI B16.5 SS Pipe Flange And Forged Flange Suppliers At Factory Price

CLASS 175 Flanges
Flanges

BS4504 SS Plate Flange,Buy From Ansi 150 CLASS 175 Flanges, EN 1092-1 Stainless Steel Threaded Flange, CLASS 175 Flanges Manufacturers In Mumbai, SS Socket Weld Flange, Check Stainless Steel Weld Neck Flange Price List 2019

CLASS 175 Flanges Specification

Specifications : CLASS 175 Flanges
Types
: Weld neck flanges, Threaded flanges, Blind flanges, SLIPON, SORF,SWRF
Pressure grade : 150, #300, #600, #900, #1500, #2500

Dimensions of CLASS 175 Flanges


Slip On Flanges

Slip On Flanges

Blind Flanges

Blind Flanges


  Thickness         Bore   LTH
Nom Size OD Weld Neck Slip-On Blind OD of RF Dia at Base Weld Neck Slip-On Weld Neck Slip-On Dia Bevel
  O T T   R X B B L L A
26 31.5 1.38 1.38 1.78 29 27.63 flanges, flange, industrial flanges, industrial flange, industrial pipe flanges, industrial fittings, industrial pipe, industrial carbon steel, industrial blind, industrial blinds, industrial, industrial waterworks, industrial stainless steel, industrial steel, industrial weld, industrial forgings, industrial orifice, industrial slip, industrial steel flange, industrial steel flanges, industrial titanium flange, industrial titanium flanges 26.25 3.38 2.75 flanges, flange, industrial flanges, industrial flange, industrial pipe flanges, industrial fittings, industrial pipe, industrial carbon steel, industrial blind, industrial blinds, industrial, industrial waterworks, industrial stainless steel, industrial steel, industrial weld, industrial forgings, industrial orifice, industrial slip, industrial steel flange, industrial steel flanges, industrial titanium flange, industrial titanium flanges
28 33.5 1.38 1.38 2 31 29.63 28.25 3.38 2.75
30 35.75 1.38 1.38 2.13 33.25 31.88 30.25 3.63 2.75
32 37.75 1.38 1.38 2.25 35.25 33.88 32.25 3.63 2.75
34 40.25 1.5 1.75 2.38 37.38 35.88 34.25 3.75 3.38
36 42.25 1.5 1.75 2.5 39.38 37.88 36.25 3.75 3.38
38 44.25 1.75 2 2.63 41.38 39.88 38.25 4.13 3.75
40 46.25 1.75 2 2.75 43.38 41.88 40.25 4.13 4
42 49 2 2.38 2.88 45.75 44.13 42.25 4.5 4.38
44 51 2 2.38 3 47.75 46.13 44.25 4.5 4.38
46 53 2 2.38 3.13 49.75 48.13 46.25 4.5 4.63
48 55 2.25 2.63 3.38 51.75 50.13 48.25 4.88 4.88
50 57 2.25 2.63 3.38 53.75 52.13 50.25 4.88 4.88
52 59.5 2.63 3 3.63 56 54.25 52.25 5.38 5.38
54 61.5 2.63 3 3.63 58 56.25 54.25 5.38 5.38
60 67.5 2.75 3.13 4 64 62.25 60.25 5.75 5.88
66 73.5 3.13 4 4.38 70 68.5 66.25 6.13 6.88
72 80 3.63 5 4.75 76.5 74.5 72.25 6.63 8
84 94 3 5 5.5 90.13 88 84.25 7 8.5
96 106 3.5 5 6.12 102.13 100 96.25 7.5 9

Dimensions are in inches. Weights are in pounds.

  Drilling       Weight
Nom Size Bolt Circle Bolt Lengtha Hole Diab # of Holes Weld Neck Slip On Blind
26 29.88 5.5 0.88 28 120 105 405
28 31.88 5.75 0.88 28 130 115 490
30 34.13 5.75 0.88 36 150 130 590
32 36.13 6 0.88 36 160 140 700
34 38.38 6.75 1 36 195 200 840
36 40.38 6.75 1 36 205 210 970
38 42.38 7.25 1 36 245 250 1125
40 44.38 7.25 1 40 255 270 1300
42 46.88 8 1.13 40 340 365 1500
44 48.88 8.25 1.13 40 360 380 1700
46 50.88 8.25 1.13 40 375 410 1925
48 52.88 8.75 1.13 44 430 460 2225
50 54.88 8.75 1.13 44 450 480 2400
52 57.25 9.75 1.25 44 560 600 2800
54 59.25 9.75 1.25 44 580 620 3000
60 65.25 10.25 1.25 48 680 730 4000
66 71.25 11.5 1.25 56 830 1000 5175
72 77.75 12.75 1.25 64 1075 1400 6650
84 91.5 13.75 1.38 72 1550 2250
96 103.5 14.25 1.38 88 1950 2600

Price List CLASS 175 Flanges

Price List
CLASS 175 Flanges US / Metric Ton (FOB Price) on request
CLASS 175 Flanges US / Metric Ton (FOB Price) on request
CLASS 175 Flanges US / Metric Ton (FOB Price) on request
CLASS 175 Flanges US / Metric Ton (FOB Price) on request

Application Of CLASS 175 Flanges

We make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.

  • Power Generation Industries
  • Food Processing Industries
  • Oil & Gas Industries
  • Sugar Industries
  • Petrochemical Industries

Testing Of CLASS 175 Flanges

We known for its accurate and perfect dimensions. We thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.

  • Eddy Current Examining
  • Power Generation Industries
  • Hydrostatic Analysis
  • Positive Material Recognition
  • Pitting Protection Test

Packing Of CLASS 175 Flanges

We uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:

  • Wooden Boxes
  • Wooden Pallets
  • Shrink-Wrapped
  • Carton Boxes
  • Wooden Boxes
