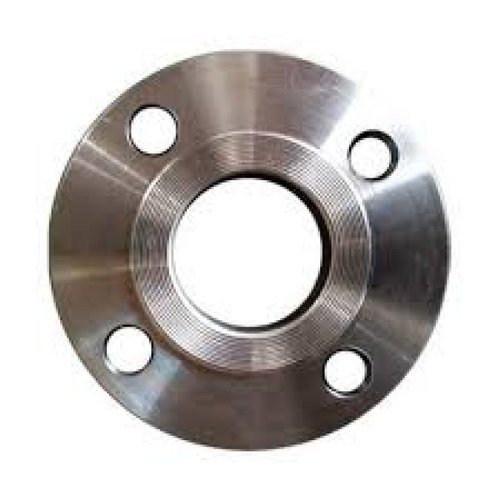

| Specifications | : | CLASS 350 Flanges |
| Types |
: | Weld neck flanges, Threaded flanges, Blind flanges, SLIPON, SORF,SWRF |
| Pressure grade | : | 150, #300, #600, #900, #1500, #2500 |

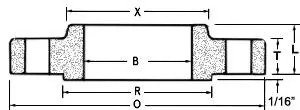

Slip On Flanges

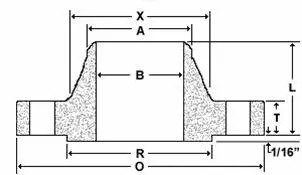

Weld Neck Flanges
Blind Flanges
| Thickness | Bore | LTH | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nom Size | OD | Weld Neck | Slip-On | Blind | OD of RF | Dia at Base | Weld Neck | Slip-On | Weld Neck | Slip-On | Dia Bevel |
| O | T | T | R | X | B | B | L | L | A | ||
| 26 | 32.75 | 2.5 | 2.5 | 2.75 | 29.5 | 27.88 |  |
26.25 | 5 | 4.5 |  |
| 28 | 34.75 | 2.5 | 2.5 | 2.88 | 31 .50 | 29.88 | 28.25 | 5 | 4.5 | ||
| 30 | 37 | 2.63 | 2.63 | 3 | 33.75 | 32.13 | 30.25 | 5.25 | 4.75 | ||
| 32 | 39 | 2.75 | 2.75 | 3.25 | 35.75 | 34.13 | 32.25 | 5.5 | 5 | ||
| 34 | 41 | 2.88 | 2.88 | 3.38 | 37.75 | 36.13 | 34.25 | 5.75 | 5.13 | ||
| 36 | 43.75 | 3.13 | 3.13 | 3.63 | 40.25 | 38.5 | 36.25 | 6.13 | 5.63 | ||
| 38 | 45.75 | 3.13 | 3.13 | 3.75 | 42.25 | 40.5 | 38.25 | 6.13 | 5.63 | ||
| 40 | 47.75 | 3.25 | 3.25 | 4 | 44.25 | 42.5 | 40.25 | 6.25 | 5.88 | ||
| 42 | 50 | 3.5 | 3.5 | 4.13 | 46.5 | 44.75 | 42.25 | 6.5 | 6.13 | ||
| 44 | 52.75 | 3.75 | 3.75 | 4.38 | 48.88 | 46.75 | 44.25 | 6.75 | 6.75 | ||
| 46 | 54.75 | 4.25 | 4.25 | 4.75 | 50.88 | 48.75 | 46.25 | 7.25 | 7.25 | ||
| 48 | 56.75 | 4.25 | 4.25 | 4.75 | 52.88 | 50.75 | 48.25 | 7.25 | 7.25 | ||
| 52 | 61.5 | 4.25 | – | – | 57.25 | 55 | 52.25 | 7.5 | – | ||
| 54 | 63.5 | 4.5 | 4.75 | – | 59.25 | 57 | 54.25 | 7.75 | 8.25 | ||
| 60 | 69.5 | 4.5 | 5 | – | 65.25 | 63 | 60.25 | 8 | 8.5 | ||
| 66 | 77 | 4 | – | – | 72.38 | 70 | 66.25 | 8.5 | – | ||
| 72 | 83 | 4 | – | – | 78.38 | 76 | 72.25 | 9 | – |
Dimensions are in inches. Weights are in pounds.
| Drilling | Weight | ||||||
| Nom Size | Bolt Circle | Bolt Length | Hole Dia | # of Holes | Weld Neck | Slip On | Blind |
| 26 | 30.63 | 8 | 1.13 | 28 | 245 | 225 | 580 |
| 28 | 32.63 | 8.25 | 1.13 | 28 | 260 | 250 | 750 |
| 30 | 34.88 | 8.5 | 1.13 | 32 | 305 | 295 | 890 |
| 32 | 36.88 | 8.75 | 1.13 | 36 | 340 | 325 | 1050 |
| 34 | 38.88 | 9 | 1.13 | 40 | 375 | 355 | 1225 |
| 36 | 41.5 | 9.75 | 1.25 | 40 | 480 | 465 | 1500 |
| 38 | 43.5 | 10 | 1.25 | 40 | 510 | 490 | 1700 |
| 40 | 45.5 | 10.25 | 1.25 | 44 | 540 | 530 | 1975 |
| 42 | 47.75 | 10.75 | 1.25 | 48 | 640 | 620 | 2225 |
| 44 | 50.25 | 11.5 | 1.38 | 44 | 760 | 760 | 2625 |
| 46 | 52.25 | 12.25 | 1.38 | 48 | 880 | 880 | 2950 |
| 48 | 54.25 | 12.25 | 1.38 | 48 | 920 | 920 | 3300 |
| 52 | 58.75 | – | 1.5 | 52 | 1075 | – | – |
| 54 | 60.75 | – | 1.5 | 52 | 1200 | 1150 | – |
| 60 | 66.75 | – | 1.5 | 60 | 1325 | 1450 | – |
| 66 | 74 | – | 1.63 | 60 | 1675 | – | – |
| 72 | 80 | – | 1.63 | 72 | 1850 | – | – |
We make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.
- Power Generation Industries
- Food Processing Industries
- Oil & Gas Industries
- Sugar Industries
- Petrochemical Industries
We known for its accurate and perfect dimensions. We thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Eddy Current Examining
- Power Generation Industries
- Hydrostatic Analysis
- Positive Material Recognition
- Pitting Protection Test
We uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Pallets
- Shrink-Wrapped
- Carton Boxes
- Wooden Boxes
