Table of Contents
B16.47 SS Blind Flanges, ANSI B16.1 125 Weld Neck B16.48 Stainless Steel Slip On Flange,Contact For Best Gaskets For ANSI B16.1 125 Weld Neck Flanges, ANSI B16.1 125 Weld Neck B16.5 SS Pipe Flange And Forged Flange Suppliers At Factory Price
BS4504 SS Plate Flange,Buy From Ansi 150 ANSI B16.1 125 Weld Neck Flanges, EN 1092-1 Stainless Steel Threaded Flange, ANSI B16.1 125 Weld Neck Flanges Manufacturers In Mumbai, SS Socket Weld Flange, Check Stainless Steel Weld Neck Flange Price List 2019
| Specifications | : | ANSI B16.1 125 Weld Neck Flanges |
| Size | : | ½” (15 NB) to 48″ (1200NB) |
| Production Technique |
: | Forged, Heat treated and machined |
| Class | : | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Etc. |

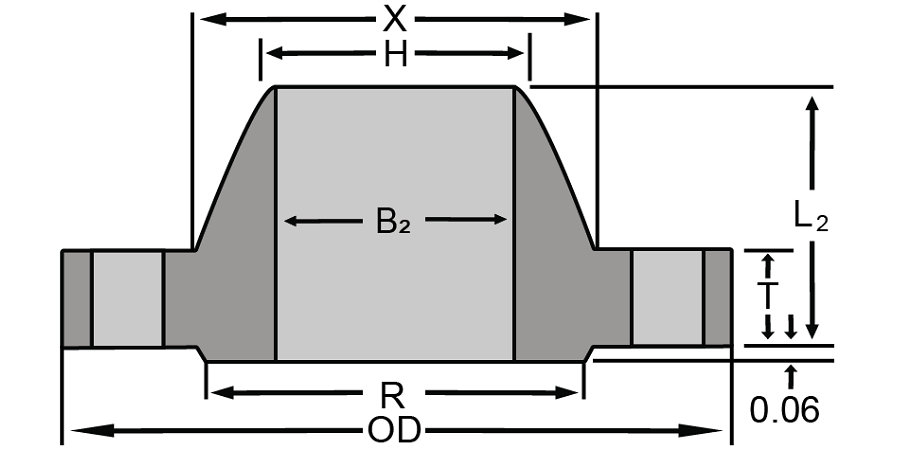

| Nominal Size | Outside Diameter (OD) |
Thickness (T) |
Raised Face Dia. (R) |
Diameter At Base (X) |
* Bore (B2) |
Diameter Bevel (H) |
LTH (L2) |
Drilling - Bolt Circle (BC) |
Drilling - Hole Diameter | Drilling - No. of Holes | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 26 | 34.25 | 2 | 29.5 | 28.5 | * | 26 | 5 | 31.75 | 1.38 | 24 | 265 |
| 28 | 36.5 | 2.06 | 31.5 | 30.75 | * | 28 | 5.06 | 34 | 1.38 | 28 | 295 |
| 30 | 38.75 | 2.13 | 33.75 | 32.75 | * | 30 | 5.13 | 36 | 1.38 | 28 | 340 |
| 32 | 41.75 | 2.25 | 36 | 35 | * | 32 | 5.25 | 38.5 | 1.63 | 28 | 410 |
| 34 | 43.75 | 2.31 | 38 | 37 | * | 34 | 5.31 | 40.5 | 1.63 | 32 | 440 |
| 36 | 46 | 2.38 | 40.25 | 39.25 | * | 36 | 5.38 | 42.75 | 1.63 | 32 | 495 |
| 38 | 48.75 | 2.38 | 42.25 | 41.75 | * | 38 | 5.38 | 45.25 | 1.63 | 32 | 570 |
| 40 | 50.75 | 2.5 | 44.25 | 43.75 | * | 40 | 5.5 | 47.25 | 1.63 | 36 | 620 |
| 42 | 53 | 2.63 | 47 | 46 | * | 42 | 5.63 | 49.5 | 1.63 | 36 | 710 |
| 44 | 55.25 | 2.63 | 49 | 48 | * | 44 | 5.63 | 51.75 | 1.63 | 40 | 750 |
| 46 | 57.25 | 2.69 | 51 | 50 | * | 46 | 5.68 | 53.75 | 1.63 | 40 | 800 |
| 48 | 59.5 | 2.75 | 53.5 | 52.25 | * | 48 | 5.75 | 56 | 1.63 | 44 | 870 |
| 50 | 61.75 | 2.75 | 55.5 | 54.25 | * | 50 | 5.75 | 58.25 | 1.88 | 44 | 900 |
| 52 | 64 | 2.88 | 57.5 | 56.5 | * | 52 | 5.88 | 60.5 | 1.88 | 44 | 1000 |
| 54 | 66.25 | 3 | 59.75 | 58.75 | * | 54 | 6 | 62.75 | 1.88 | 44 | 1100 |
| 60 | 73 | 3.13 | 66 | 65.25 | * | 60 | 6.13 | 69.25 | 1.88 | 52 | 1350 |
| 66 | 80 | 3.38 | - | 71.5 | * | 66 | 6.38 | 76 | 1.88 | 52 | 1775 |
| 72 | 86.5 | 3.5 | - | 78.5 | * | 72 | 6.5 | 82.5 | 1.88 | 60 | 2100 |
| 84 | 99.75 | 3.88 | - | 90.5 | * | 84 | 6.88 | 95.5 | 2.13 | 64 | 2825 |
| 96 | 113.25 | 4.25 | - | 102.75 | * | 96 | 7.25 | 108.5 | 2.44 | 68 | 3800 |
| Price List | |
| ANSI B16.1 125 Weld Neck Flanges | US / Metric Ton (FOB Price) on request |
| ANSI B16.1 125 Weld Neck Flanges | US / Metric Ton (FOB Price) on request |
| ANSI B16.1 125 Weld Neck Flanges | US / Metric Ton (FOB Price) on request |
| ANSI B16.1 125 Weld Neck Flanges | US / Metric Ton (FOB Price) on request |
We make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.
- Power Generation Industries
- Food Processing Industries
- Oil & Gas Industries
- Sugar Industries
- Petrochemical Industries
We known for its accurate and perfect dimensions. We thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Eddy Current Examining
- Power Generation Industries
- Hydrostatic Analysis
- Positive Material Recognition
- Pitting Protection Test
We uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Pallets
- Shrink-Wrapped
- Carton Boxes
- Wooden Boxes
