| Specifications | : | ANSI B16.1 250 Flanges |
| Size | : | ½” (15 NB) to 48″ (1200NB) |
| Production Technique |
: | Forged, Heat treated and machined |
| Class | : | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS Etc. |

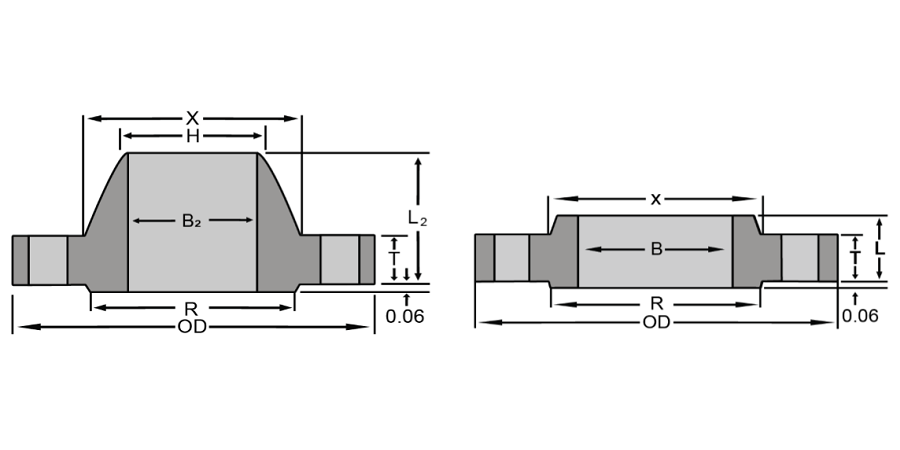

| Nominal Size | Outside Diameter (OD) |
Thickness (T) |
Raised Face Dia. (R) |
Diameter At Base (X) |
* Bore (B2) |
Diameter Bevel (H) |
LTH (L2) |
Drilling - Bolt Circle (BC) |
Drilling - Hole Diameter | Drilling - No. of Holes | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 26 | 34.25 | 2 | 29.5 | 28.5 | * | 26 | 5 | 31.75 | 1.38 | 24 | 265 |
| 28 | 36.5 | 2.06 | 31.5 | 30.75 | * | 28 | 5.06 | 34 | 1.38 | 28 | 295 |
| 30 | 38.75 | 2.13 | 33.75 | 32.75 | * | 30 | 5.13 | 36 | 1.38 | 28 | 340 |
| 32 | 41.75 | 2.25 | 36 | 35 | * | 32 | 5.25 | 38.5 | 1.63 | 28 | 410 |
| 34 | 43.75 | 2.31 | 38 | 37 | * | 34 | 5.31 | 40.5 | 1.63 | 32 | 440 |
| 36 | 46 | 2.38 | 40.25 | 39.25 | * | 36 | 5.38 | 42.75 | 1.63 | 32 | 495 |
| 38 | 48.75 | 2.38 | 42.25 | 41.75 | * | 38 | 5.38 | 45.25 | 1.63 | 32 | 570 |
| 40 | 50.75 | 2.5 | 44.25 | 43.75 | * | 40 | 5.5 | 47.25 | 1.63 | 36 | 620 |
| 42 | 53 | 2.63 | 47 | 46 | * | 42 | 5.63 | 49.5 | 1.63 | 36 | 710 |
| 44 | 55.25 | 2.63 | 49 | 48 | * | 44 | 5.63 | 51.75 | 1.63 | 40 | 750 |
| 46 | 57.25 | 2.69 | 51 | 50 | * | 46 | 5.68 | 53.75 | 1.63 | 40 | 800 |
| 48 | 59.5 | 2.75 | 53.5 | 52.25 | * | 48 | 5.75 | 56 | 1.63 | 44 | 870 |
| 50 | 61.75 | 2.75 | 55.5 | 54.25 | * | 50 | 5.75 | 58.25 | 1.88 | 44 | 900 |
| 52 | 64 | 2.88 | 57.5 | 56.5 | * | 52 | 5.88 | 60.5 | 1.88 | 44 | 1000 |
| 54 | 66.25 | 3 | 59.75 | 58.75 | * | 54 | 6 | 62.75 | 1.88 | 44 | 1100 |
| 60 | 73 | 3.13 | 66 | 65.25 | * | 60 | 6.13 | 69.25 | 1.88 | 52 | 1350 |
| 66 | 80 | 3.38 | - | 71.5 | * | 66 | 6.38 | 76 | 1.88 | 52 | 1775 |
| 72 | 86.5 | 3.5 | - | 78.5 | * | 72 | 6.5 | 82.5 | 1.88 | 60 | 2100 |
| 84 | 99.75 | 3.88 | - | 90.5 | * | 84 | 6.88 | 95.5 | 2.13 | 64 | 2825 |
| 96 | 113.25 | 4.25 | - | 102.75 | * | 96 | 7.25 | 108.5 | 2.44 | 68 | 3800 |
| Price List | |
| ANSI B16.1 250 Flanges | US / Metric Ton (FOB Price) on request |
| ANSI B16.1 250 Flanges | US / Metric Ton (FOB Price) on request |
| ANSI B16.1 250 Flanges | US / Metric Ton (FOB Price) on request |
| ANSI B16.1 250 Flanges | US / Metric Ton (FOB Price) on request |
