Big Diameter Flanges Specification
Specifications | : | ASME B16.5 Big Diameter Flanges |
Size | : | 1/2"NB TO 24"NB IN |
Flange Face Type | : | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
Big Diameter Flanges Production Range

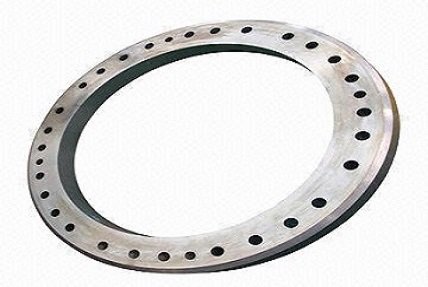

![Stainless Steel Big Diameter Flanges Stainless Steel Big Diameter Flanges](images/product-types/big-diameter-flanges.jpg)
Stainless Steel
- Stainless Steel 304 Big Diameter Flanges
- SS 304L Raised Face Big Diameter Flanges
- UNS S30400 Big Diameter Flanges

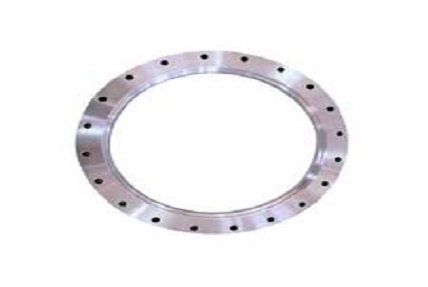

![High Nickel Big Diameter Flanges High Nickel Big Diameter Flanges](images/flanges-alloy-steel/alloy-steel-types/alloy-big-diameter-flanges.jpg)
High Nickel
- Inconel 600, 601 Raised Face Big Diameter Flanges
- Nickel Alloy 200 Big Diameter Flanges
- Titanium Grade 2 Big Diameter Flanges

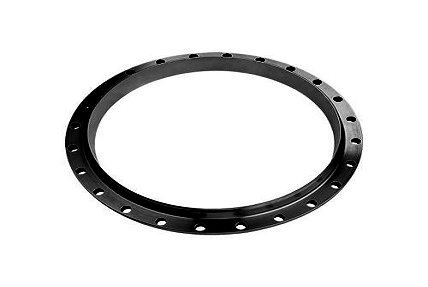

![Carbon Steel Big Diameter Flanges Carbon Steel Big Diameter Flanges](images/flanges-carbon/flanges-carbon-types/carbon-steel-big-diameter-flanges.jpg)
Carbon Steel
- UNS K03504 Big Diameter Flanges
- LF3 Big Diameter Flanges
- ASME B16.47 Carbon Steel Big Diameter Flanges
Dimension Of Big Diameter Flanges
NPS | (OD) | Minimum Thickness WNF (tf) |
Minimum Thickness Blind (tf) |
Length Through Of Hub (Y) |
Hub Diameter Base [Note2] (X) |
Hub Diameter Top (A) |
RF Diameter (R) |
Drilling – Bolt Circle Diameter | Drilling – Number of Bolt Holes | Drilling – Diameter of Bolt Hole | Diameter of Bolt | Minimum Fillet Radius (r1) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
26 | 34.25 | 2.63 | 2.63 | 4.69 | 26.62 | 26.00 | 29.50 | 31.75 | 24 | 13\8 | 11\4 | 0.38 |
28 | 36.50 | 2.75 | 2.75 | 4.88 | 28.62 | 28.00 | 31.50 | 34.00 | 28 | 13⁄8 | 11⁄4 | 0.44 |
30 | 38.75 | 2.88 | 2.88 | 5.32 | 30.75 | 30.00 | 33.75 | 36.00 | 28 | 13⁄8 | 11⁄4 | 0.44 |
32 | 41.75 | 3.13 | 3.13 | 5.63 | 32.75 | 32.00 | 36.00 | 38.50 | 28 | 15⁄8 | 11⁄2 | 0.44 |
34 | 43.75 | 3.19 | 3.19 | 5.82 | 34.75 | 34.00 | 38.00 | 40.50 | 32 | 15⁄8 | 11⁄2 | 0.50 |
36 | 46.00 | 3.50 | 3.50 | 6.13 | 36.75 | 36.00 | 40.25 | 42.75 | 32 | 15⁄8 | 11⁄2 | 0.50 |
38 | 48.75 | 3.38 | 3.38 | 6.13 | 39.00 | 38.00 | 42.25 | 45.25 | 32 | 15⁄8 | 11⁄2 | 0.50 |
40 | 50.75 | 3.50 | 3.50 | 6.38 | 41.00 | 40.00 | 44.25 | 47.25 | 36 | 15⁄8 | 11⁄2 | 0.50 |
42 | 53.00 | 3.75 | 3.75 | 6.69 | 43.00 | 42.00 | 47.00 | 49.50 | 36 | 15⁄8 | 11⁄2 | 0.50 |
44 | 55.25 | 3.94 | 3.94 | 6.94 | 45.00 | 44.00 | 49.00 | 51.75 | 40 | 15⁄8 | 11⁄2 | 0.50 |
46 | 57.25 | 4.00 | 4.00 | 7.25 | 47.12 | 46.00 | 51.00 | 53.75 | 40 | 15⁄8 | 11⁄2 | 0.50 |
48 | 59.50 | 4.19 | 4.19 | 7.50 | 49.12 | 48.00 | 53.50 | 56.00 | 44 | 15⁄8 | 11⁄2 | 0.50 |
50 | 61.75 | 4.32 | 4.32 | 7.94 | 51.25 | 50.00 | 55.50 | 58.25 | 44 | 17⁄8 | 13⁄4 | 0.50 |
52 | 64.00 | 4.50 | 4.50 | 8.19 | 53.25 | 52.00 | 57.50 | 60.50 | 44 | 17⁄8 | 13⁄4 | 0.50 |
54 | 66.25 | 4.69 | 4.69 | 8.44 | 55.25 | 54.00 | 59.50 | 62.75 | 44 | 17⁄8 | 13⁄4 | 0.50 |
56 | 68.75 | 4.82 | 4.82 | 8.94 | 57.38 | 56.00 | 62.00 | 65.00 | 48 | 17⁄8 | 13⁄4 | 0.50 |
58 | 71.00 | 5.00 | 5.00 | 9.19 | 59.38 | 58.00 | 64.00 | 67.25 | 48 | 17⁄8 | 13⁄4 | 0.50 |
60 | 73.00 | 5.13 | 5.13 | 9.38 | 61.38 | 60.00 | 66.00 | 69.25 | 52 | 17⁄8 | 13⁄4 | 0.50 |
