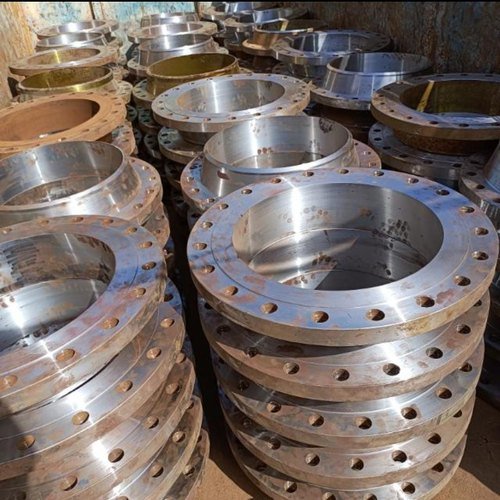

| Specifications | : | ASME B16.5 WNRF FLANGE |
| Size | : | 1/2"NB TO 24"NB IN |
| Flange Face Type | : | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
Stainless Steel
- Stainless Steel 304 WNRF Flanges
- SS 304L Raised Face WNRF Flanges
- UNS S30400 WNRF Flanges
High Nickel
- Inconel 600, 601 Raised Face WNRF Flanges
- Nickel Alloy 200 WNRF Flanges
- Titanium Grade 2 WNRF Flanges
Carbon Steel
- UNS K03504 WNRF Flanges
- LF3 WNRF Flanges
- ASME B16.47 Carbon Steel WNRF Flanges
| NPS | Dia D |
THK B |
Dia A |
Dia OD |
Height H |
Dia K |
Dia L |
| 1/2 | 3.5 | 0.38 | 1.19 | 0.84 | 1.81 | 2.38 | 5/8 |
| 3/4 | 3.88 | 0.44 | 1.5 | 1.05 | 2 | 2.75 | 5/8 |
| 1 | 4.25 | 0.5 | 1.94 | 1.32 | 2.12 | 3.12 | 5/8 |
| 1.1/4 | 4.62 | 0.56 | 2.31 | 1.66 | 2.19 | 3.5 | 5/8 |
| 1.1/2 | 5 | 0.62 | 2.56 | 1.9 | 2.38 | 3.88 | 5/8 |
| 2 | 6 | 0.69 | 3.06 | 2.38 | 2.44 | 4.75 | 3/4 |
| 2.1/2 | 7 | 0.81 | 3.56 | 2.88 | 2.69 | 5.5 | 3/4 |
| 3 | 7.5 | 0.88 | 4.25 | 3.5 | 2.69 | 6 | 3/4 |
| 3.1/2 | 8.5 | 0.88 | 4.81 | 4 | 2.75 | 7 | 3/4 |
| 4 | 9 | 0.88 | 5.31 | 4.5 | 2.94 | 7.5 | 3/4 |
| 5 | 10 | 0.88 | 6.44 | 5.56 | 3.44 | 8.5 | 7/8 |
| 6 | 11 | 0.94 | 7.56 | 6.63 | 3.44 | 9.5 | 7/8 |
| 8 | 13.5 | 1.06 | 9.69 | 8.63 | 3.94 | 11.75 | 7/8 |
| 10 | 16 | 1.12 | 12 | 10.75 | 3.94 | 14.25 | 1 |
| 12 | 19 | 1.19 | 14.38 | 12.75 | 4.44 | 17 | 1 |
| 14 | 21 | 1.31 | 15.75 | 14 | 4.94 | 18.75 | 1.1/8 |
| 16 | 23.5 | 1.38 | 18 | 16 | 4.94 | 21.25 | 1.1/8 |
| 18 | 25 | 1.5 | 19.88 | 18 | 5.44 | 22.75 | 1.1/4 |
| 20 | 27.5 | 1.62 | 22 | 20 | 5.62 | 25 | 1.1/4 |
| 24 | 32 | 1.81 | 26.12 | 24 | 5.94 | 29.5 | 1.3/8 |
| Price List | |
| WNRF Flanges | US / Metric Ton (FOB Price) on request |
| WNRF Flanges | US / Metric Ton (FOB Price) on request |
| WNRF Flanges | US / Metric Ton (FOB Price) on request |
| WNRF Flanges | US / Metric Ton (FOB Price) on request |
| Preview | Products | UNS | DIN |
|---|---|---|---|
 |
Stainless Steel WNRF Flanges | UNS S30400, S30403, S31600, S31603 WNRF Flanges | 1.4301, 1.4306, 1.4401, 1.4404 WNRF Flanges |
 |
Duplex / Super Duplex Steel WNRF Flanges | UNS S31803, S32205, SAF-2205, S32750, S32760, SAF-2507 WNRF Flanges | 1.4462, 1.4410 WNRF Flanges |
 |
Copper Nickel WNRF Flanges | UNS C70600, C71500 WNRF Flanges | 2.0872, 2.0882 WNRF Flanges |
 |
Alloy Steel WNRF Flanges | UNS K41545, K90941, K11597, K21590 WNRF Flanges | 1.7362, 1.7386, 1.7335, 1.7380 WNRF Flanges |
| American Steel WNRF Flanges Standard | |
| Standard Code | Standard Name |
| ANSI ASME SA-182 | WNRF Flanges |
| ANSI ASME B16.5 | WNRF Flanges , sortj, soff, rfso flange |
| ASME – B 16.36 | WNRF Flanges |
We make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.
- Power Generation Industries
- Food Processing Industries
- Oil & Gas Industries
- Sugar Industries
- Petrochemical Industries
We known for its accurate and perfect dimensions. We thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Eddy Current Examining
- Power Generation Industries
- Hydrostatic Analysis
- Positive Material Recognition
- Pitting Protection Test
We uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Pallets
- Shrink-Wrapped
- Carton Boxes
- Wooden Boxes
