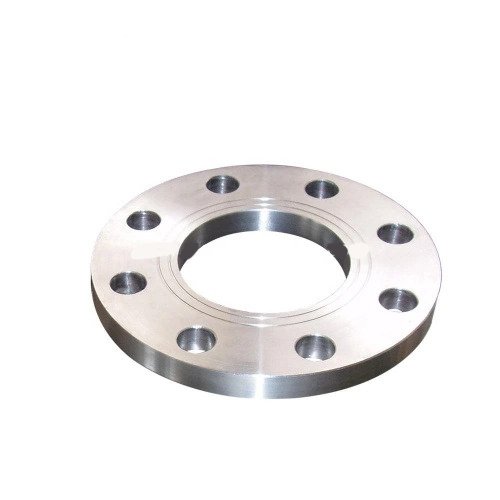

| Specifications | : | JIS B2220 10k Flanges |
| Size | : | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards |
: | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, JIS B2220 10k, PN25, PN40, PN64 etc. |

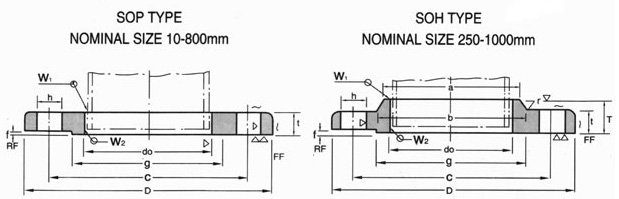

| Nominal | Outside | Inside | Outside | Sectional Dimensions of Flange | Bolt Hole | Nor | Approx. | ||||||||||
| Dia. of | Dia. of | Dia.of | Dia. of | t | T | Dia. of Hub | r | Dia. of | Dia. of | Bolt. | No. | Hole | Bolt | Weight | |||
| Flange | Steel | Flange | Flange | a | b | Face | Rai- sed Face |
Circle | of Bolt | Dia. | Size | (kg) | |||||
| Pipe | do | D | f | g | Dia | Holes | h | SOP | BL | SOH | |||||||
| 10 | 17.3 | 17.8 | 90.0 | 12 | - | - | - | - | 1 | 46 | 65 | 4 | 15 | M12 | 0.51 | 0.53 | - |
| 15 | 21.7 | 22.2 | 95.0 | 12 | - | - | - | - | 1 | 51 | 70 | 4 | 15 | M12 | 0.56 | 0.60 | - |
| 20 | 27.2 | 27.7 | 100.0 | 14 | - | - | - | - | 1 | 56 | 75 | 4 | 15 | M12 | 0.72 | 0.79 | - |
| 25 | 34.0 | 34.5 | 125.0 | 14 | - | - | - | - | 1 | 67 | 90 | 4 | 19 | M16 | 1.12 | 1.22 | - |
| 32 | 42.7 | 43.2 | 135.0 | 16 | - | - | - | - | 2 | 76 | 100 | 4 | 19 | M16 | 1.47 | 1.66 | - |
| 40 | 48.6 | 49.1 | 140.0 | 16 | - | - | - | - | 2 | 81 | 105 | 4 | 19 | M16 | 1.55 | 1.79 | - |
| 50 | 60.5 | 61.1 | 155.0 | 16 | - | - | - | - | 2 | 96 | 120 | 4 | 19 | M16 | 1.86 | 2.23 | - |
| 65 | 76.3 | 77.1 | 175.0 | 18 | - | - | - | - | 2 | 116 | 140 | 4 | 19 | M16 | 2.58 | 3.24 | - |
| 80 | 89.1 | 90.0 | 185.0 | 18 | - | - | - | - | 2 | 126 | 150 | 8 | 19 | M16 | 2.58 | 3.48 | - |
| (90) | 101.6 | 102.6 | 195.0 | 18 | - | - | - | - | 2 | 136 | 160 | 8 | 19 | M16 | 2.73 | 3.90 | - |
| 100 | 114.3 | 115.4 | 210.0 | 18 | - | - | - | - | 2 | 151 | 175 | 8 | 19 | M16 | 3.10 | 4.57 | - |
| 125 | 139.6 | 141.2 | 250.0 | 20 | - | - | - | - | 2 | 182 | 210 | 8 | 23 | M20 | 4.73 | 7.18 | - |
| 150 | 165.2 | 166.6 | 280.0 | 22 | - | - | - | - | 2 | 212 | 240 | 8 | 23 | M20 | 6.30 | 10.10 | - |
| (175) | 190.7 | 192.1 | 305.0 | 22 | - | - | - | - | 2 | 237 | 265 | 12 | 23 | M20 | 6.75 | 11.80 | - |
| 200 | 216.3 | 218.0 | 330.0 | 22 | - | - | - | - | 2 | 262 | 290 | 12 | 23 | M20 | 7.46 | 8.00 | - |
| (225) | 241.8 | 243.7 | 350.0 | 22 | - | - | - | - | 2 | 282 | 310 | 12 | 23 | M20 | 7.70 | 15.80 | - |
| 250 | 267.4 | 269.5 | 400.0 | 24 | 36 | 288 | 292 | 6 | 2 | 324 | 355 | 12 | 25 | M22 | 11.80 | 22.60 | 12.70 |
| 300 | 318.5 | 321.0 | 445.0 | 24 | 38 | 340 | 346 | 6 | 3 | 368 | 400 | 16 | 25 | M22 | 12.60 | 27.80 | 13.80 |
| 350 | 355.6 | 358.1 | 490.0 | 26 | 42 | 380 | 386 | 6 | 3 | 413 | 445 | 16 | 25 | M22 | 16.30 | 36.90 | 18.20 |
| 400 | 406.4 | 409.0 | 560.0 | 28 | 44 | 436 | 442 | 6 | 3 | 475 | 510 | 16 | 27 | M24 | 23.20 | 52.10 | 25.80 |
| 450 | 457.2 | 460.0 | 620.0 | 30 | 48 | 496 | 502 | 6 | 3 | 530 | 565 | 20 | 27 | M24 | 29.30 | 68.40 | 33.40 |
| 500 | 508.0 | 511.0 | 675.0 | 30 | 48 | 548 | 554 | 6 | 3 | 585 | 620 | 20 | 27 | M24 | 33.30 | 81.60 | 38.00 |
| (550) | 558.8 | 562.0 | 745.0 | 32(34) | 52 | 604 | 610 | 6 | 3 | 640 | 680 | 20 | 27 | M30 | 42.90 | 105(112) | 49.40 |
| 600 | 609.6 | 613.0 | 795.0 | 32(36) | 52 | 656 | 662 | 6 | 3 | 690 | 730 | 24 | 33 | M30 | 45.40 | 120(134) | 52.60 |
| (650) | 660.4 | 664.0 | 845.0 | 34(38) | 56 | 706 | 712 | 6 | 3 | 740 | 780 | 24 | 33 | M30 | 51.80 | 144(161) | 60.20 |
| 700 | 711.2 | 715.0 | 905.0 | 34(40) | 58 | 762 | 770 | 6 | 3 | 800 | 840 | 24 | 33 | M30 | 59.00 | 176(196) | 70.20 |
| (750) | 762.0 | 766.0 | 970.0 | 36(44) | 62 | 816 | 824 | 6 | 3 | 855 | 900 | 24 | 33 | M30 | 72.80 | 214(248) | 86.50 |
| 800 | 812.8 | 817.0 | 1020.0 | 36(46) | 64 | 868 | 876 | 6 | 3 | 905 | 950 | 28 | 33 | M30 | 76.00 | 249(286) | 92.00 |
| (850) | 863.6 | 868.0 | 1070.0 | 36(48) | 66 | 920 | 928 | 6 | 3 | 955 | 1000 | 28 | 33 | M30 | 80.10 | (330) | 98.70 |
| 900 | 914.4 | 919.0 | 1120.0 | 38(50) | 70 | 971 | 979 | 6 | 3 | 1005 | 1050 | 28 | 33 | M30 | 88.90 | (377) | 110.00 |
| 1000 | 1016.0 | 1021.0 | 1235.0 | 40(56) | 74 | 1073 | 1081 | 6 | 3 | 1110 | 1160 | 28 | 39 | M36 | 109.00 | (512) | 133.00 |
| 1100 | 1117.6 | 1122.0 | 1345.0 | 42(62) | 95 | 1175 | 1185 | 8 | 3 | 1220 | 1270 | 28 | 39 | M36 | 131.00 | (675) | 175.00 |
| 1200 | 1219.2 | 1224.0 | 1465.0 | 44(66) | 101 | 1278 | 1290 | 8 | 3 | 1325 | 1380 | 32 | 39 | M36 | 163.00 | (854) | 215.00 |
| 1350 | 1371.6 | 1376.0 | 1630.0 | 48(74) | 110 | 1432 | 1450 | 8 | 3 | 1480 | 1540 | 36 | 45 | M42 | 204.00 | (1180) | 274.00 |
| 1500 | 1524.0 | 1529.0 | 1795.0 | 50(82) | 123 | 1585 | 1605 | 8 | 3 | 1635 | 1700 | 40 | 45 | M42 | 248.00 | (1590) | 340.00 |
| Price List | |
| JIS B2220 10k Flanges | US / Metric Ton (FOB Price) on request |
| JIS B2220 10k Flanges | US / Metric Ton (FOB Price) on request |
| JIS B2220 10k Flanges | US / Metric Ton (FOB Price) on request |
| JIS B2220 10k Flanges | US / Metric Ton (FOB Price) on request |
