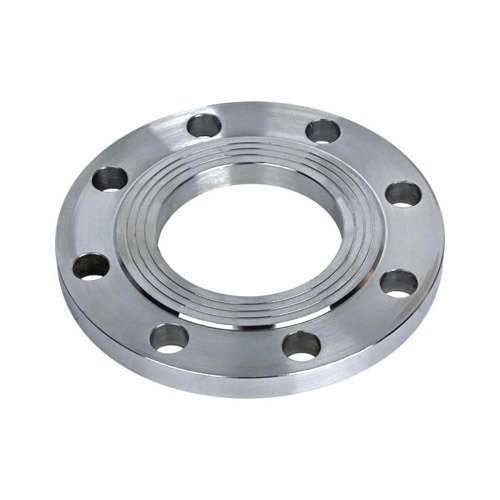

| Specifications | : | JIS B2220 5k Flanges |
| Size | : | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards |
: | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, JIS B2220 5k, PN25, PN40, PN64 etc. |

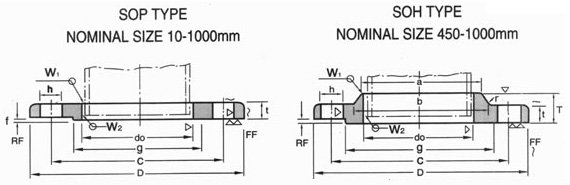

| Nominal | Outside | Inside | Outside | Sectional Dimensions of Flange | Bolt Hole | Nominal | Approx. | ||||||||||
| Dia. of | Dia. of | Dia. of | Dia. of | t | T | Dia. of Hub | r | Dia. of | Dia. of | Bolt. | Number | Hole | Bolt | Weight | |||
| Flange | Steel | Flange | Flange | a | b | Face | Raised Face | Circle | of Bolt | Dia. | Size | (kg) | |||||
| Pipe | do | D | f | g | Dia | Holes | h | SOP | BL | SOH | |||||||
| 10 | 17.3 | 17.8 | 75.0 | 9 | - | - | - | - | 1 | 39 | 55 | 4 | 12 | M10 | 0.26 | 0.28 | - |
| 15 | 21.7 | 22.2 | 80.0 | 9 | - | - | - | - | 1 | 44 | 60 | 4 | 12 | M10 | 0.30 | 0.32 | - |
| 20 | 27.2 | 27.7 | 85.0 | 10 | - | - | - | - | 1 | 49 | 65 | 4 | 12 | M10 | 0.36 | 0.41 | - |
| 25 | 34.0 | 34.5 | 95.0 | 10 | - | - | - | - | 1 | 59 | 75 | 4 | 12 | M10 | 0.45 | 0.52 | - |
| 32 | 42.7 | 43.2 | 115.0 | 12 | - | - | - | - | 2 | 70 | 90 | 4 | 15 | M12 | 0.77 | 0.91 | - |
| 40 | 48.6 | 49.1 | 120.0 | 12 | - | - | - | - | 2 | 75 | 95 | 4 | 15 | M12 | 0.82 | 1.00 | - |
| 50 | 60.5 | 61.1 | 130.0 | 14 | - | - | - | - | 2 | 85 | 105 | 4 | 15 | M12 | 1.06 | 1.38 | - |
| 65 | 76.3 | 77.1 | 155.0 | 14 | - | - | - | - | 2 | 110 | 130 | 4 | 15 | M12 | 1.48 | 2.00 | - |
| 80 | 89.1 | 90.0 | 180.0 | 14 | - | - | - | - | 2 | 121 | 145 | 4 | 19 | M16 | 1.97 | 2.67 | - |
| (90) | 101.6 | 102.6 | 190.0 | 14 | - | - | - | - | 2 | 131 | 155 | 4 | 19 | M16 | 2.08 | 2.99 | - |
| 100 | 114.3 | 115.4 | 200.0 | 16 | - | - | - | - | 2 | 141 | 165 | 8 | 19 | M16 | 2.35 | 3.66 | - |
| 125 | 139.6 | 141.2 | 235.0 | 16 | - | - | - | - | 2 | 176 | 200 | 8 | 19 | M16 | 3.20 | 5.16 | - |
| 150 | 165.2 | 166.6 | 265.0 | 18 | - | - | - | - | 2 | 206 | 230 | 8 | 19 | M16 | 4.39 | 7.47 | - |
| (175) | 190.7 | 192.1 | 300.0 | 18 | - | - | - | - | 2 | 232 | 260 | 8 | 23 | M20 | 5.42 | 9.52 | - |
| 200 | 216.3 | 218.0 | 320.0 | 20 | - | - | - | - | 2 | 252 | 280 | 8 | 23 | M20 | 6.24 | 12.10 | - |
| (225) | 241.8 | 243.7 | 345.0 | 20 | - | - | - | - | 2 | 277 | 305 | 12 | 23 | M20 | 6.57 | 13.90 | - |
| 250 | 267.4 | 269.5 | 385.0 | 22 | - | - | - | - | 2 | 317 | 345 | 12 | 23 | M20 | 9.39 | 19.20 | - |
| 300 | 318.5 | 321.0 | 430.0 | 22 | - | - | - | - | 3 | 360 | 390 | 12 | 23 | M20 | 10.20 | 24.20 | - |
| 350 | 355.6 | 358.1 | 480.0 | 24 | - | - | - | - | 3 | 403 | 435 | 12 | 25 | M22 | 14.00 | 33.00 | - |
| 400 | 406.4 | 409.0 | 540.0 | 24 | - | - | - | - | 3 | 463 | 495 | 16 | 25 | M22 | 16.90 | 41.70 | - |
| 450 | 457.2 | 460.0 | 605.0 | 24 | 40 | 495 | 500 | 5 | 3 | 523 | 555 | 16 | 25 | M22 | 21.40 | 52.70 | 24.90 |
| 500 | 508.0 | 511.0 | 655.0 | 24 | 40 | 546 | 552 | 5 | 3 | 573 | 605 | 20 | 25 | M22 | 23.00 | 61.60 | 27.00 |
| (550) | 558.8 | 562.0 | 720.0 | 26 | 42 | 597 | 603 | 5 | 3 | 630 | 665 | 20 | 27 | M24 | 30.10 | 80.80 | 34.50 |
| 600 | 609.6 | 613.0 | 770.0 | 26 | 44 | 648 | 654 | 5 | 3 | 680 | 715 | 20 | 27 | M24 | 32.50 | 92.70 | 37.80 |
| (650) | 660.4 | 664.0 | 825.0 | 26(28) | 48 | 702 | 708 | 5 | 3 | 735 | 770 | 24 | 27 | M24 | 35.60 | 106(114) | 43.20 |
| 700 | 711.2 | 715.0 | 875.0 | 26(30) | 48 | 751 | 758 | 5 | 3 | 785 | 820 | 24 | 27 | M24 | 38.00 | 120(138) | 45.80 |
| (750) | 762.0 | 766.0 | 945.0 | 28(32) | 52 | 802 | 810 | 5 | 3 | 840 | 880 | 24 | 33 | M30 | 48.40 | 150(171) | 57.70 |
| 800 | 812.8 | 817.0 | 995.0 | 28(34) | 52 | 854 | 862 | 5 | 3 | 890 | 930 | 24 | 33 | M30 | 51.20 | (202) | 61.30 |
| (850) | 863.6 | 868.0 | 1045.0 | 28(36) | 54 | 904 | 912 | 5 | 3 | 940 | 980 | 24 | 33 | M30 | 53.90 | (237) | 65.30 |
| 900 | 914.4 | 919.0 | 1095.0 | 30(36) | 56 | 956 | 964 | 5 | 3 | 990 | 1030 | 24 | 33 | M30 | 60.70 | (260) | 73.10 |
| 1000 | 1016.0 | 1021.0 | 1195.0 | 32(40) | 60 | 1058 | 1066 | 5 | 3 | 1090 | 1130 | 28 | 33 | M30 | 70.10 | (345) | 84.80 |
| 1100 | 1117.6 | 1122.0 | 1305.0 | 32(44) | 71 | 1158 | 1170 | 7 | 3 | 1200 | 1240 | 28 | 33 | M30 | 81.60 | (454) | 105.00 |
| 1200 | 1219.2 | 1224.0 | 1420.0 | 34(48) | 77 | 1260 | 1272 | 7 | 3 | 1305 | 1350 | 32 | 33 | M30 | 101.00 | (586) | 129.00 |
| 1350 | 1371.6 | 1376.0 | 1575.0 | 34(48) | 80 | 1414 | 1426 | 7 | 3 | 1460 | 1505 | 32 | 33 | M30 | 116.00 | (814) | 151.00 |
| 1500 | 1524.0 | 1529.0 | 1730.0 | 36(58) | 86 | 1568 | 1580 | 7 | 3 | 1615 | 1660 | 36 | 33 | M30 | 137.00 | (1060) | 180.00 |
| Price List | |
| JIS B2220 5k Flanges | US / Metric Ton (FOB Price) on request |
| JIS B2220 5k Flanges | US / Metric Ton (FOB Price) on request |
| JIS B2220 5k Flanges | US / Metric Ton (FOB Price) on request |
| JIS B2220 5k Flanges | US / Metric Ton (FOB Price) on request |
We make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.
- Power Generation Industries
- Food Processing Industries
- Oil & Gas Industries
- Sugar Industries
- Petrochemical Industries
We known for its accurate and perfect dimensions. We thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Eddy Current Examining
- Power Generation Industries
- Hydrostatic Analysis
- Positive Material Recognition
- Pitting Protection Test
We uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Pallets
- Shrink-Wrapped
- Carton Boxes
- Wooden Boxes
