| Specifications | : | ASME B16.5 LAP JOINT FLANGE |
| Size | : | 1/2"NB TO 24"NB IN |
| Flange Face Type | : | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
Stainless Steel
- Stainless Steel 304 Lap Joint Flanges
- SS 304L Raised Face Lap Joint Flanges
- UNS S30400 Lap Joint Flanges
High Nickel
- Inconel 600, 601 Raised Face Lap Joint Flanges
- Nickel Alloy 200 Lap Joint Flanges
- Titanium Grade 2 Lap Joint Flanges
Carbon Steel
- UNS K03504 Lap Joint Flanges
- LF3 Lap Joint Flanges
- ASME B16.47 Carbon Steel Lap Joint Flanges
ASME B16.5 Lap Joint Flanges Class 150

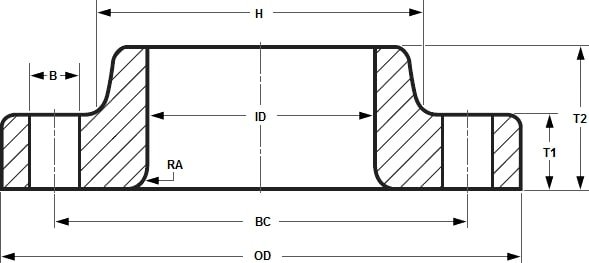

| SIZE | ID | OD | Bolt Circle (BC) | H | T1 | T2 | RA | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.88" | 3.50" | 2.38" | 1.19" | .44" | .62" | .12" | .62" | 4 |
| 3/4" | 1.09" | 3.88" | 2.75" | 1.50" | .50" | .62" | .12" | .62" | 4 |
| 1" | 1.36" | 4.25" | 3.12" | 1.94" | .56" | .69" | .12" | .62" | 4 |
| 1-1/4" | 1.70" | 4.62" | 3.50" | 2.31" | .62" | .81" | .19" | .62" | 4 |
| 1-1/2" | 1.97" | 5.00" | 3.88" | 2.56" | .69" | .88" | .25" | .62" | 4 |
| 2" | 2.44" | 6.00" | 4.75" | 3.06" | .75" | 1.00" | .31" | .75" | 4 |
| 2-1/2" | 2.94" | 7.00" | 5.50" | 3.56" | .88" | 1.12" | .31" | .75" | 4 |
| 3" | 3.57" | 7.50" | 6.00" | 4.25" | .94" | 1.19" | .38" | .75" | 4 |
| 3-1/2" | 4.07" | 8.50" | 7.00" | 4.81" | .94" | 1.25" | .38" | .75" | 8 |
| 4" | 4.57" | 9.00" | 7.50" | 5.31" | .94" | 1.31" | .44" | .75" | 8 |
| 5" | 5.66" | 10.00" | 8.50" | 6.44" | .94" | 1.44" | .44" | .88" | 8 |
| 6" | 6.72" | 11.00" | 9.50" | 7.56" | 1.00" | 1.56" | .50" | .88" | 8 |
| 8" | 8.72" | 13.50" | 11.75" | 9.69" | 1.12" | 1.75" | .50" | .88" | 8 |
| 10" | 10.88" | 16.00" | 14.25" | 12.00" | 1.19" | 1.94" | .50" | 1.00" | 12 |
| 12" | 12.88" | 19.00" | 17.00" | 14.38" | 1.25" | 2.19" | .50" | 1.00" | 12 |
| 14" | 14.14" | 21.00" | 18.75" | 15.75" | 1.38" | 3.12" | .50" | 1.12" | 12 |
| 16" | 16.16" | 23.50" | 21.25" | 18.00" | 1.44" | 3.44" | .50" | 1.12" | 16 |
| 18" | 18.18" | 25.00" | 22.75" | 19.88" | 1.56" | 3.81" | .50" | 1.25" | 16 |
| 20" | 20.20" | 27.50" | 25.00" | 22.00" | 1.69" | 4.06" | .50" | 1.25" | 20 |
| 22" | 22.22" | 29.50" | 27.25" | 24.25" | 1.81" | 4.25" | .50" | 1.38" | 20 |
| 24" | 24.25" | 32.00" | 29.50" | 26.12" | 1.88" | 4.38" | .50" | 1.38" | 20 |
ASME B16.5 Lap Joint Flanges Class 300
| SIZE | ID | OD | Bolt Circle (BC) | H | T1 | T2 | RA | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.90" | 3.75" | 2.62" | 1.50" | 0.56" | 0.88" | .12" | 0.62" | 4 |
| 3/4" | 1.11" | 4.62" | 3.25" | 1.88" | 0.62" | 1.00" | .12" | 0.75" | 4 |
| 1" | 1.38" | 4.88" | 3.50" | 2.12" | 0.69" | 1.06" | .12" | 0.75" | 4 |
| 1-1/4" | 1.72" | 5.25" | 3.88" | 2.50" | 0.75" | 1.06" | .19" | 0.75" | 4 |
| 1-1/2" | 1.97" | 6.12" | 4.50" | 2.75" | 0.81" | 1.19" | .25" | 0.88" | 4 |
| 2" | 2.46" | 6.50" | 5.00" | 3.31" | 0.88" | 1.31" | .31" | 0.75" | 8 |
| 2-1/2" | 2.97" | 7.50" | 5.88" | 3.94" | 1.00" | 1.50" | .31" | 0.88" | 8 |
| 3" | 3.60" | 8.25" | 6.62" | 4.62" | 1.12" | 1.69" | .38" | 0.88" | 8 |
| 3-1/2" | 4.10" | 9.00" | 7.25" | 5.25" | 1.19" | 1.75" | .38" | 0.88" | 8 |
| 4" | 4.60" | 10.00" | 7.88" | 5.75" | 1.25" | 1.88" | .44" | 0.88" | 8 |
| 5" | 5.69" | 11.00" | 9.25" | 7.00" | 1.38" | 2.00" | .44" | 0.88" | 8 |
| 6" | 6.75" | 12.50" | 10.62" | 8.12" | 1.44" | 2.06" | .50" | 0.88" | 12 |
| 8" | 8.75" | 15.00" | 13.00" | 10.25" | 1.62" | 2.44" | .50" | 1.00" | 12 |
| 10" | 10.92" | 17.50" | 15.25" | 12.62" | 1.88" | 3.75" | .50" | 1.12" | 16 |
| 12" | 12.92" | 20.50" | 17.75" | 14.75" | 2.00" | 4.00" | .50" | 1.25" | 16 |
| 14" | 14.18" | 23.00" | 20.25" | 16.75" | 2.12" | 4.38" | .50" | 1.25" | 20 |
| 16" | 16.19" | 25.50" | 22.50" | 19.00" | 2.25" | 4.75" | .50" | 1.38" | 20 |
| 18" | 18.20" | 28.00" | 24.75" | 21.00" | 2.38" | 5.12" | .50" | 1.38" | 24 |
| 20" | 20.25" | 30.50" | 27.00" | 23.12" | 2.50" | 5.50" | .50" | 1.38" | 24 |
| 22" | 22.25" | 33.00" | 29.25" | 25.25" | 2.63" | 5.75" | .50" | 1.63" | 24 |
| 24" | 24.25" | 36.00" | 32.00" | 27.62" | 2.75" | 6.00" | .50" | 1.62" | 24 |
ASME B16.5 Lap Joint Flanges Class 600
| SIZE | ID | OD | Bolt Circle (BC) | H | T1 | T2 | RA | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.90" | 3.75" | 2.62" | 1.50" | 0.56" | 0.88" | .12" | 0.62" | 4 |
| 3/4" | 1.11" | 4.62" | 3.25" | 1.88" | 0.62" | 1.00" | .12" | 0.75" | 4 |
| 1" | 1.38" | 4.88" | 3.50" | 2.12" | 0.69" | 1.06" | .12" | 0.75" | 4 |
| 1-1/4" | 1.72" | 5.25" | 3.88" | 2.50" | 0.81" | 1.12" | .19" | 0.75" | 4 |
| 1-1/2" | 1.97" | 6.12" | 4.50" | 2.75" | 0.88" | 1.25" | .25" | 0.88" | 4 |
| 2" | 2.46" | 6.50" | 5.00" | 3.31" | 1.00" | 1.44" | .31" | 0.75" | 8 |
| 2-1/2" | 2.97" | 7.50" | 5.88" | 3.94" | 1.12" | 1.62" | .31" | 0.88" | 8 |
| 3" | 3.60" | 8.25" | 6.62" | 4.62" | 1.25" | 1.81" | .38" | 0.88" | 8 |
| 3-1/2" | 4.10" | 9.00" | 7.25" | 5.25" | 1.38" | 1.94" | .38" | 1.00" | 8 |
| 4" | 4.60" | 10.75" | 8.50" | 6.00" | 1.5" | 2.12" | .44" | 1.00" | 8 |
| 5" | 5.69" | 13.00" | 10.50" | 7.44" | 1.75" | 2.38" | .44" | 1.12" | 8 |
| 6" | 6.75" | 14.00" | 11.50" | 8.75" | 1.88" | 2.62" | .50" | 1.12" | 12 |
| 8" | 8.75" | 16.50" | 13.75" | 10.75" | 2.19" | 3.00" | .50" | 1.25" | 12 |
| 10" | 10.92" | 20.00" | 17.00" | 13.5" | 2.50" | 4.38" | .50" | 1.38" | 16 |
| 12" | 12.92" | 22.00" | 19.25" | 15.75" | 2.62" | 4.62" | .50" | 1.38" | 20 |
| 14" | 14.18" | 23.75" | 20.75" | 17.00" | 2.75" | 5.00" | .50" | 1.50" | 20 |
| 16" | 16.19" | 27.00" | 23.75" | 19.50" | 3.00" | 5.50" | .50" | 1.62" | 20 |
| 18" | 18.20" | 29.25" | 25.75" | 21.50" | 3.25" | 6.00" | .50" | 1.75" | 20 |
| 20" | 20.25" | 32.00" | 28.50" | 24.00" | 3.50" | 6.50" | .50" | 1.75" | 24 |
| 22" | 22.25" | 34.25" | 30.63" | 26.25" | 3.75" | 6.88" | .50" | 1.75" | 24 |
| 24" | 24.25" | 37.00" | 33.00" | 28.25" | 4.00" | 7.25" | .50" | 2.00" | 24 |
ASME B16.5 Lap Joint Flanges Class 900
| SIZE | ID | OD | Bolt Circle (BC) | H | T1 | T2 | RA | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|
| 3" | 3.60" | 9.50" | 7.50" | 5.00" | 1.50" | 2.13" | .38" | 1.00" | 8 |
| 4" | 4.60" | 11.50" | 9.25" | 6.25" | 1.75" | 2.75" | .44" | 1.25" | 8 |
| 5" | 5.69" | 13.75" | 11.00" | 7.50" | 3.00" | 3.13" | .44" | 1.38" | 8 |
| 6" | 6.75" | 15.00" | 12.50" | 9.25" | 2.19" | 3.38" | .50" | 1.25" | 12 |
| 8" | 8.75" | 18.50" | 15.50" | 11.75" | 2.50" | 4.50" | .50" | 1.50" | 12 |
| 10" | 10.92" | 21.50" | 18.50" | 14.50" | 2.75" | 5.00" | .50" | 1.50" | 16 |
| 12" | 12.92" | 24.00" | 21.00" | 16.50" | 3.13" | 5.63" | .50" | 1.50" | 20 |
| 14" | 14.18" | 25.25" | 22.00" | 17.75" | 3.38" | 6.13" | .50" | 1.63" | 20 |
| 16" | 16.19" | 27.75" | 24.25" | 20.00" | 3.50" | 6.50" | .50" | 1.75" | 20 |
| 18" | 18.20" | 31.00" | 27.00" | 22.25" | 4.00" | 7.50" | .50" | 2.00" | 20 |
| 20" | 20.25" | 33.75" | 29.50" | 24.50" | 4.25" | 8.25" | .50" | 2.13" | 20 |
| 24" | 24.25" | 41.00" | 35.50" | 29.50" | 5.50" | 10.50" | .50" | 2.63" | 20 |
ASME B16.5 Lap Joint Flanges Class 1500
| SIZE | ID | OD | Bolt Circle (BC) | H | T1 | T2 | RA | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.90" | 4.75" | 3.25" | 1.50" | 0.88" | 1.25" | .12" | 0.88" | 4 |
| 3/4" | 1.11" | 5.13" | 3.50" | 1.75" | 1.00" | 1.38" | .12" | 0.88" | 4 |
| 1" | 1.38" | 5.88" | 4.00" | 2.06" | 1.13" | 1.63" | .12" | 1.00" | 4 |
| 1-1/4" | 1.72" | 6.25" | 4.38" | 2.50" | 1.13" | 1.63" | .19" | 1.00" | 4 |
| 1-1/2" | 1.97" | 7.00" | 4.88" | 2.75" | 1.25" | 1.75" | .25" | 1.13" | 4 |
| 2" | 2.46" | 8.50" | 6.50" | 4.13" | 1.50" | 2.25" | .31" | 1.00" | 8 |
| 2-1/2" | 2.97" | 9.63" | 7.50" | 4.88" | 1.63" | 2.50" | .31" | 1.13" | 8 |
| 3" | 3.60" | 10.50" | 8.00" | 5.25" | 1.88" | 2.88" | .38" | 1.25" | 8 |
| 4" | 4.60" | 12.25" | 9.50" | 6.38" | 2.13" | 3.56" | .44" | 1.38" | 8 |
| 5" | 5.69" | 14.75" | 11.50" | 7.75" | 2.88" | 4.13" | .44" | 1.63" | 8 |
| 6" | 6.75" | 15.50" | 12.50" | 9.00" | 3.25" | 4.69" | .50" | 1.50" | 12 |
| 8" | 8.75" | 19.00" | 15.50" | 11.50" | 3.63" | 5.63" | .50" | 1.75" | 12 |
| 10" | 10.92" | 23.00" | 19.00" | 14.50" | 4.25" | 7.00" | .50" | 2.00" | 12 |
| 12" | 12.92" | 26.50" | 22.50" | 17.75" | 4.88" | 8.63" | .50" | 2.13" | 16 |
| 14" | 14.18" | 29.50" | 25.00" | 19.50" | 5.25" | 9.50" | .50" | 2.38" | 16 |
| 16" | 16.19" | 32.50" | 27.75" | 21.75" | 5.75" | 10.25" | .50" | 2.63" | 16 |
| 18" | 18.20" | 36.00" | 30.50" | 23.50" | 6.38" | 10.88" | .50" | 2.88" | 16 |
| 20" | 20.25" | 38.75" | 32.75" | 25.25" | 7.00" | 11.50" | .50" | 3.13" | 16 |
| 24" | 24.25" | 46.00" | 39.00" | 30.00" | 8.00" | 13.00" | .50" | 3.63" | 16 |
ASME B16.5 Lap Joint Flanges Class 2500
| SIZE | ID | OD | Bolt Circle (BC) | H | T1 | T2 | RA | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.90" | 5.25" | 3.50" | 1.69" | 1.19" | 1.56" | .12" | 0.88" | 4 |
| 3/4" | 1.11" | 5.50" | 3.75" | 2.00" | 1.25" | 1.69" | .12" | 0.88" | 4 |
| 1" | 1.38" | 6.25" | 4.25" | 2.25" | 1.38" | 1.88" | .12" | 1.00" | 4 |
| 1-1/4" | 1.72" | 7.25" | 5.13" | 2.88" | 1.50" | 2.06" | .19" | 1.13" | 4 |
| 1-1/2" | 1.97" | 8.00" | 5.75" | 3.13" | 1.75" | 2.38" | .25" | 1.25" | 4 |
| 2" | 2.46" | 9.25" | 6.75" | 3.75" | 2.00" | 2.75" | .31" | 1.13" | 8 |
| 2-1/2" | 2.97" | 10.50" | 7.75" | 4.50" | 2.25" | 3.13" | .31" | 1.25" | 8 |
| 3" | 3.60" | 12.00" | 9.00" | 5.25" | 2.63" | 3.63" | .38" | 1.38" | 8 |
| 4" | 4.60" | 14.00" | 10.75" | 6.50" | 3.00" | 4.25" | .44" | 1.63" | 8 |
| 5" | 5.69" | 16.50" | 12.75" | 8.00" | 3.63" | 5.13" | .44" | 1.88" | 8 |
| 6" | 6.75" | 19.00" | 14.50" | 9.25" | 4.25" | 6.00" | .50" | 2.13" | 8 |
| 8" | 8.75" | 21.75" | 17.25" | 12.00" | 5.00" | 7.00" | .50" | 2.13" | 12 |
| 10" | 10.92" | 26.50" | 21.25" | 14.75" | 6.50" | 9.00" | .50" | 2.63" | 12 |
| 12" | 12.92" | 30.00" | 24.38" | 17.38" | 7.25" | 10.00" | .50" | 2.88" | 12 |
| Price List | |
| B16.5-Lap-Joint-150lb-300lb-600lb-900lb-1500lb-2500lb Lap Joint Flanges | US / Metric Ton (FOB Price) on request |
| B16.5-Lap-Joint-150lb-300lb-600lb-900lb-1500lb-2500lb Lap Joint Flanges | US / Metric Ton (FOB Price) on request |
| B16.5-Lap-Joint-150lb-300lb-600lb-900lb-1500lb-2500lb Lap Joint Flanges | US / Metric Ton (FOB Price) on request |
| B16.5-Lap-Joint-150lb-300lb-600lb-900lb-1500lb-2500lb Lap Joint Flanges | US / Metric Ton (FOB Price) on request |
| Preview | Products | UNS | DIN |
|---|---|---|---|
 |
Stainless Steel Lap Joint Flanges | UNS S30400, S30403, S31600, S31603 Lap Joint Flanges | 1.4301, 1.4306, 1.4401, 1.4404 Lap Joint Flanges |
 |
Duplex / Super Duplex Steel Lap Joint Flanges | UNS S31803, S32205, SAF-2205, S32750, S32760, SAF-2507 Lap Joint Flanges | 1.4462, 1.4410 Lap Joint Flanges |
 |
Copper Nickel Lap Joint Flanges | UNS C70600, C71500 Lap Joint Flanges | 2.0872, 2.0882 Lap Joint Flanges |
 |
Alloy Steel Lap Joint Flanges | UNS K41545, K90941, K11597, K21590 Lap Joint Flanges | 1.7362, 1.7386, 1.7335, 1.7380 Lap Joint Flanges |
| American Steel Lap Joint Flanges Standard | |
| Standard Code | Standard Name |
| ANSI ASME SA-182 | Lap Joint Flanges |
| ANSI ASME B16.5 | Lap Joint Flanges , sortj, soff, rfso flange |
| ASME – B 16.36 | Lap Joint Flanges |
