CS Pipe Flanges Trader, ASTM A694 Socket weld Flanges Manufacturers in Mumbai, Slip On Socket Weld Flanges, Competitive Price of CS Slip on Flange,Ready Stock of Slip On Flange, Slip On SWRF Flanges, Slip On Reducing Flanges, Slip On Industrial Flanges, Largest Stockholder of CS Flanges in Mumbai, India.
Slip On Spectacle Blind Flanges Supplier in Mumbai, ANSI B16.5 Slip On Blind Flanges, Slip On Long Socket Weld Flanges, ASME SA694 RTJ Flanges, Socket Weld Flanges Stockist, Slip On Orifice Flange, Buy CS Socket Weld Flanges,Carbon Plate Flanges Dealer, Slip On Forged Flanges, Slip On Socket Weld Flanges Wholesaler, Slip On SORF Flanges, India.
| Specifications | : | ASME B16.5 SOCKET WELD FLANGE |
| Size | : | 1/2"NB TO 24"NB IN |
| Flange Face Type | : | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
Stainless Steel
- Stainless Steel 304 Socket Weld Flanges
- SS 304L Raised Face Socket Weld Flanges
- UNS S30400 Socket Weld Flanges
High Nickel
- Inconel 600, 601 Raised Face Socket Weld Flanges
- Nickel Alloy 200 Socket Weld Flanges
- Titanium Grade 2 Socket Weld Flanges
Carbon Steel
- UNS K03504 Socket Weld Flanges
- LF3 Socket Weld Flanges
- ASME B16.47 Carbon Steel Socket Weld Flanges
ASME B16.5 Weld Neck Flanges Class 150

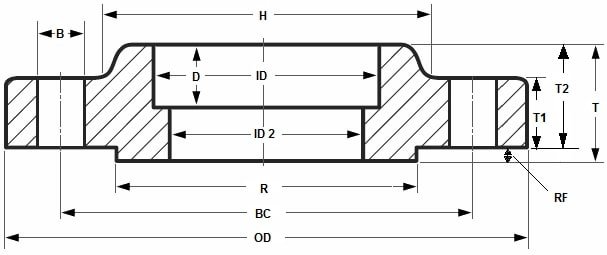

| SIZE | ID | OD | Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | H | D | ID 2* | Raised Face Thickness (T) | T1 | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.88" | 3.50" | 2.38" | 1.38" | .063" | 1.19" | .38" | 0.62" | .62" | .38" | .56" | .62" | 4 |
| 3/4" | 1.09" | 3.88" | 2.75" | 1.69" | .063" | 1.50" | .44" | 0.82" | .62" | .44" | .56" | .62" | 4 |
| 1" | 1.36" | 4.25" | 3.12" | 2.00" | .063" | 1.94" | .50" | 1.05" | .69" | .50" | .63" | .62" | 4 |
| 1-1/4" | 1.70" | 4.62" | 3.50" | 2.50" | .063" | 2.31" | .56" | 1.38" | .81" | .56" | .75" | .62" | 4 |
| 1-1/2" | 1.97" | 5.00" | 3.88" | 2.88" | .063" | 2.56" | .62" | 1.61" | .88" | .62" | .82" | .62" | 4 |
| 2" | 2.44" | 6.00" | 4.75" | 3.62" | .063" | 3.06" | .69" | 2.07" | 1.00" | .69" | .94" | .75" | 4 |
| 2-1/2" | 2.94" | 7.00" | 5.50" | 4.12" | .063" | 3.56" | .75" | 2.47" | 1.12" | .82" | 1.06" | .75" | 4 |
| 3" | 3.57" | 7.50" | 6.00" | 5.00" | .063" | 4.25" | .81" | 3.07" | 1.19" | .88" | 1.13" | .75" | 4 |
| 3-1/2" | 4.07" | 8.50" | 7.00" | 5.50" | .063" | 4.81" | .88" | 3.55" | 1.25" | .88" | 1.19" | .75" | 8 |
| 4" | 4.57" | 9.00" | 7.50" | 6.19" | .063" | 5.31" | .94" | 4.03" | 1.31" | .88" | 1.25" | .75" | 8 |
| 5" | 5.66" | 10.00" | 8.50" | 7.31" | .063" | 6.44" | .94" | 5.05" | 1.44" | .88" | 1.38" | .88" | 8 |
| 6" | 6.72" | 11.00" | 9.50" | 8.50" | .063" | 7.56" | 1.06" | 6.07" | 1.56" | .94" | 1.50" | .88" | 8 |
| 8" | 8.72" | 13.50" | 11.75" | 10.62" | .063" | 9.69" | 1.25" | 7.98" | 1.75" | 1.06" | 1.69" | .88" | 8 |
| 10" | 10.88" | 16.00" | 14.25" | 12.75" | .063" | 12.00" | 1.31" | 10.02" | 1.94" | 1.13" | 1.88" | 1.00" | 12 |
| 12" | 12.88" | 19.00" | 17.00" | 15.00" | .063" | 14.38" | 1.56" | 12.00" | 2.19" | 1.19" | 2.13" | 1.00" | 12 |
| 14" | 14.14" | 21.00" | 18.75" | 16.25" | .063" | 15.75" | 1.63" | 13.25" | 2.25" | 1.32" | 2.19" | 1.12" | 12 |
| 16" | 16.16" | 23.50" | 21.25" | 18.50" | .063" | 18.00" | 1.75" | 15.25" | 2.50" | 1.38" | 2.44" | 1.12" | 16 |
| 18" | 18.18" | 25.00" | 22.75" | 21.00" | .063" | 19.88" | 1.94" | 17.25" | 2.69" | 1.50" | 2.63" | 1.25" | 16 |
| 20" | 20.20" | 27.50" | 25.00" | 23.00" | .063" | 22.00" | 2.13" | 19.25" | 2.88" | 1.63" | 2.83" | 1.25" | 20 |
| 22" | 22.22" | 29.50" | 27.25" | 25.25" | .063" | 24.25" | 2.38" | 21.25" | 3.13" | 1.75" | 3.07" | 1.38" | 20 |
| 24" | 24.25" | 32.00" | 29.50" | 27.25" | .063" | 26.12" | 2.50" | 23.25" | 3.25" | 1.82" | 3.19" | 1.38" | 20 |
ASME B16.5 Weld Neck Flanges Class 300
| SIZE | ID | OD | Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | H | D | ID 2* | Raised Face Thickness (T) | T1 | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.88" | 3.75" | 2.62" | 1.38" | .063" | 1.50" | .38" | 0.62" | 0.88" | 0.50" | 0.82" | 0.62" | 4 |
| 3/4" | 1.09" | 4.62" | 3.25" | 1.69" | .063" | 1.88" | .44" | 0.82" | 1.00" | .056" | 0.94" | 0.75" | 4 |
| 1" | 1.36" | 4.88" | 3.50" | 2.00" | .063" | 2.12" | .50" | 1.05" | 1.06" | 0.63" | 1.00" | 0.75" | 4 |
| 1-1/4" | 1.70" | 5.25" | 3.88" | 2.50" | .063" | 2.50" | .56" | 1.38" | 1.06" | 0.69" | 1.00" | 0.75" | 4 |
| 1-1/2" | 1.97" | 6.12" | 4.50" | 2.88" | .063" | 2.75" | .62" | 1.61" | 1.19" | 0.75" | 1.13" | 0.88" | 4 |
| 2" | 2.44" | 6.50" | 5.00" | 3.62" | .063" | 3.31" | .69" | 2.07" | 1.31" | 0.82" | 1.25" | 0.75" | 8 |
| 2-1/2" | 2.94" | 7.50" | 5.88" | 4.12" | .063" | 3.94" | .75" | 2.47" | 1.50" | 0.94" | 1.44" | 0.88" | 8 |
| 3" | 3.57" | 8.25" | 6.62" | 5.00" | .063" | 4.62" | .81" | 3.07" | 1.69" | 1.06" | 1.63" | 0.88" | 8 |
ASME B16.5 Weld Neck Flanges Class 600
| SIZE | ID | OD | Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | H | D | ID 2* | Raised Face Thickness (T) | T1 | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.88" | 3.75" | 2.62" | 1.38" | .250" | 1.50" | .38" | 0.55" | 1.13" | 0.56" | 0.88" | 0.62" | 4 |
| 3/4" | 1.09" | 4.62" | 3.25" | 1.69" | .250" | 1.88" | .44" | 0.74" | 1.25" | 0.62" | 1.00" | 0.75" | 4 |
| 1" | 1.36" | 4.88" | 3.50" | 2.00" | .250" | 2.12" | .50" | 0.96" | 1.31" | 0.69" | 1.06" | 0.75" | 4 |
| 1-1/4" | 1.70" | 5.25" | 3.88" | 2.50" | .250" | 2.50" | .56" | 1.28" | 1.37" | 0.81" | 1.12" | 0.75" | 4 |
| 1-1/2" | 1.97" | 6.12" | 4.50" | 2.88" | .250" | 2.75" | .62" | 1.50" | 1.50" | 0.88" | 1.25" | 0.88" | 4 |
| 2" | 2.44" | 6.50" | 5.00" | 3.62" | .250" | 3.31" | .69" | 1.94" | 1.69" | 1.00" | 1.44" | 0.75" | 8 |
| 2-1/2" | 2.94" | 7.50" | 5.88" | 4.12" | .250" | 3.94" | .75" | 2.32" | 1.87" | 1.12" | 1.62" | 0.88" | 8 |
| 3" | 3.57" | 8.25" | 6.62" | 5.00" | .250" | 4.62" | .81" | 2.90" | 2.06" | 1.25" | 1.81" | 0.88" | 8 |
ASME B16.5 Weld Neck Flanges Class 1500
| SIZE | ID | OD | Bolt Circle (BC) | Raised Face (R) | Raised Face (RF) | H | D | ID 2* | Raised Face Thickness (T) | T1 | Flat Face Thickness (T2) | Bolt Hole (B) | No. of Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.88" | 4.75" | 3.25" | 1.38" | .250" | 1.50" | .38" | 0.55" | 1.50" | 0.88" | 1.25" | 0.88" | 4 |
| 3/4" | 1.09" | 5.13" | 3.50" | 1.69" | .250" | 1.75" | .44" | 0.74" | 1.63" | 1.00" | 1.38" | 0.88" | 4 |
| 1" | 1.36" | 5.88" | 4.00" | 2.00" | .250" | 2.06" | .50" | 0.96" | 1.88" | 1.13" | 1.63" | 1.00" | 4 |
| 1-1/4" | 1.70" | 6.25" | 4.38" | 2.50" | .250" | 2.50" | .56" | 1.28" | 1.88" | 1.13" | 1.63" | 1.00" | 4 |
| 1-1/2" | 1.97" | 7.00" | 4.88" | 2.88" | .250" | 2.75" | .62" | 1.50" | 2.00" | 1.25" | 1.75" | 1.13" | 4 |
| 2" | 2.44" | 8.50" | 6.50" | 3.63" | .250" | 4.13" | .69" | 1.94" | 2.50" | 1.50" | 2.25" | 1.00" | 8 |
| 2-1/2" | 2.94" | 9.63" | 7.50" | 4.13" | .250" | 4.88" | .75" | 2.32" | 2.75" | 1.63" | 2.50" | 1.13" | 8 |
| Price List | |
| B16.5-Socket-Welding-150lb-300lb-600lb-1500lb Socket Weld Flanges | US / Metric Ton (FOB Price) on request |
| B16.5-Socket-Welding-150lb-300lb-600lb-1500lb Socket Weld Flanges | US / Metric Ton (FOB Price) on request |
| B16.5-Socket-Welding-150lb-300lb-600lb-1500lb Socket Weld Flanges | US / Metric Ton (FOB Price) on request |
| B16.5-Socket-Welding-150lb-300lb-600lb-1500lb Socket Weld Flanges | US / Metric Ton (FOB Price) on request |
| Preview | Products | UNS | DIN |
|---|---|---|---|
 |
Stainless Steel Socket Weld Flanges | UNS S30400, S30403, S31600, S31603 Socket Weld Flanges | 1.4301, 1.4306, 1.4401, 1.4404 Socket Weld Flanges |
 |
Duplex / Super Duplex Steel Socket Weld Flanges | UNS S31803, S32205, SAF-2205, S32750, S32760, SAF-2507 Socket Weld Flanges | 1.4462, 1.4410 Socket Weld Flanges |
 |
Copper Nickel Socket Weld Flanges | UNS C70600, C71500 Socket Weld Flanges | 2.0872, 2.0882 Socket Weld Flanges |
 |
Alloy Steel Socket Weld Flanges | UNS K41545, K90941, K11597, K21590 Socket Weld Flanges | 1.7362, 1.7386, 1.7335, 1.7380 Socket Weld Flanges |
| American Steel Socket Weld Flanges Standard | |
| Standard Code | Standard Name |
| ANSI ASME SA-182 | Socket Weld Flanges |
| ANSI ASME B16.5 | Socket Weld Flanges , sortj, soff, rfso flange |
| ASME – B 16.36 | Socket Weld Flanges |
