CS Pipe Flanges Trader, ASTM A694 Socket weld Flanges Manufacturers in Mumbai, Slip On Weld Neck Flanges, Competitive Price of CS Slip on Flange,Ready Stock of Slip On Flange, Slip On SWRF Flanges, Slip On Reducing Flanges, Slip On Industrial Flanges, Largest Stockholder of CS Flanges in Mumbai, India.
Slip On Spectacle Blind Flanges Supplier in Mumbai, ANSI B16.5 Slip On Blind Flanges, Slip On Long Weld Neck Flanges, ASME SA694 RTJ Flanges, Weld Neck Flanges Stockist, Slip On Orifice Flange, Buy CS Threaded Flanges,Carbon Plate Flanges Dealer, Slip On Forged Flanges, Slip On Lap Joint Flanges Wholesaler, Slip On SORF Flanges, India.
| Specifications | : | ASME B16.5 WELD NECK FLANGE |
| Size | : | 1/2"NB TO 24"NB IN |
| Flange Face Type | : | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
Stainless Steel
- Stainless Steel 304 Weld Neck Flanges
- SS 304L Raised Face Weld Neck Flanges
- UNS S30400 Weld Neck Flanges
High Nickel
- Inconel 600, 601 Raised Face Weld Neck Flanges
- Nickel Alloy 200 Weld Neck Flanges
- Titanium Grade 2 Weld Neck Flanges
Carbon Steel
- UNS K03504 Weld Neck Flanges
- LF3 Weld Neck Flanges
- ASME B16.47 Carbon Steel Weld Neck Flanges

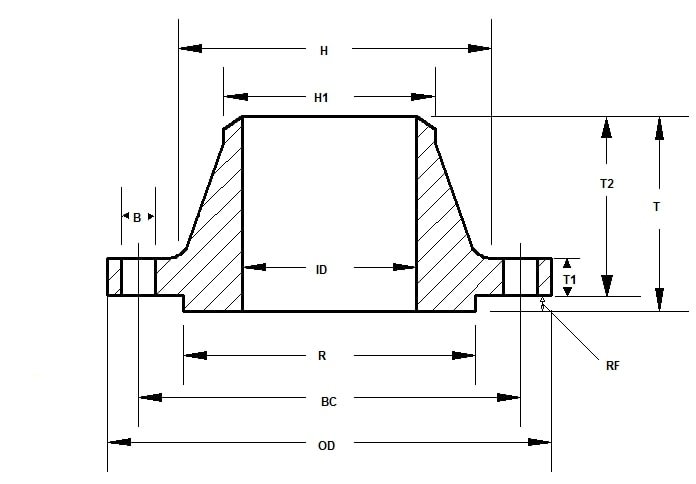

ASME B16.5 Weld Neck Flanges Class 150
| Size | ID* | OD | Bolt Circle
(BC) |
Raised Face
(R) |
Raised Face
(RF) |
H | H1 | Raised Face
Thickness (T) |
T1 | Flat Face
Thickness (T2) |
Bolt Hole
(B) |
No. of
Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.62" | 3.50" | 2.38" | 1.38" | .063" | 1.19" | 0.84" | 1.88" | .38" | 1.82" | .62" | 4 |
| 3/4" | 0.82" | 3.88" | 2.75" | 1.69" | .063" | 1.50" | 1.05" | 2.06" | .44" | 2.00" | .62" | 4 |
| 1" | 1.05" | 4.25" | 3.12" | 2.00" | .063" | 1.94" | 1.32" | 2.19" | .50" | 2.13" | .62" | 4 |
| 1-1/4" | 1.38" | 4.62" | 3.50" | 2.50" | .063" | 2.31" | 1.66" | 2.25" | .56" | 2.19" | .62" | 4 |
| 1-1/2" | 1.61" | 5.00" | 3.88" | 2.88" | .063" | 2.56" | 1.90" | 2.44" | .62" | 2.38" | .62" | 4 |
| 2" | 2.07" | 6.00" | 4.75" | 3.62" | .063" | 3.06" | 2.38" | 2.50" | .69" | 2.44" | .75" | 4 |
| 2-1/2" | 2.47" | 7.00" | 5.50" | 4.12" | .063" | 3.56" | 2.88" | 2.75" | .82" | 2.69" | .75" | 4 |
| 3" | 3.07" | 7.50" | 6.00" | 5.00" | .063" | 4.25" | 3.50" | 2.75" | .88" | 2.69" | .75" | 4 |
| 3-1/2" | 3.55" | 8.50" | 7.00" | 5.50" | .063" | 4.81" | 4.00" | 2.81" | .88" | 2.75" | .75" | 8 |
| 4" | 4.03" | 9.00" | 7.50" | 6.19" | .063" | 5.31" | 4.50" | 3.00" | .88" | 2.94" | .75" | 8 |
| 5" | 5.05" | 10.00" | 8.50" | 7.31" | .063" | 6.44" | 5.56" | 3.50" | .88" | 3.44" | .88" | 8 |
| 6" | 6.07" | 11.00" | 9.50" | 8.50" | .063" | 7.56" | 6.63" | 3.50" | .94" | 3.44" | .88" | 8 |
| 8" | 7.98" | 13.50" | 11.75" | 10.62" | .063" | 9.69" | 8.63" | 4.00" | 1.06" | 3.94" | .88" | 8 |
| 10" | 10.02" | 16.00" | 14.25" | 12.75" | .063" | 12.00" | 10.75" | 4.00" | 1.13" | 3.94" | 1.00" | 12 |
| 12" | 12.00" | 19.00" | 17.00" | 15.00" | .063" | 14.38" | 12.75" | 4.50" | 1.19" | 4.44" | 1.00" | 12 |
| 14" | 13.25" | 21.00" | 18.75" | 16.25" | .063" | 15.75" | 14.00" | 5.00" | 1.32" | 4.94" | 1.12" | 12 |
| 16" | 15.25" | 23.50" | 21.25" | 18.50" | .063" | 18.00" | 16.00" | 5.00" | 1.38" | 4.94" | 1.12" | 16 |
| 18" | 17.25" | 25.00" | 22.75" | 21.00" | .063" | 19.88" | 18.00" | 5.50" | 1.50" | 5.44" | 1.25" | 16 |
| 20" | 19.25" | 27.50" | 25.00" | 23.00" | .063" | 22.00" | 20.00" | 5.69" | 1.63" | 5.63" | 1.25" | 20 |
| 22" | 21.25" | 29.50" | 27.25" | 25.25" | .063" | 24.25" | 22.00" | 5.88" | 1.75" | 5.82" | 1.38" | 20 |
| 24" | 23.25" | 32.00" | 29.50" | 27.25" | .063" | 26.12" | 24.00" | 6.00" | 1.82" | 5.94" | 1.38" | 20 |
ASME B16.5 Weld Neck Flanges Class 300
| Size | ID* | OD | Bolt Circle
(BC) |
Raised Face
(R) |
Raised Face
(RF) |
H | H1 | Raised Face
Thickness (T) |
T1 | Flat Face
Thickness (T2) |
Bolt Hole
(B) |
No. of
Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.62" | 3.75" | 2.62" | 1.38" | .063" | 1.50" | 0.84" | 2.06" | .50" | 2.00" | 0.62" | 4 |
| 3/4" | 0.82" | 4.62" | 3.25" | 1.69" | .063" | 1.88" | 1.05" | 2.25" | .56" | 2.19" | 0.75" | 4 |
| 1" | 1.05" | 4.88" | 3.50" | 2.00" | .063" | 2.12" | 1.32" | 2.44" | .63" | 2.38" | 0.75" | 4 |
| 1-1/4" | 1.38" | 5.25" | 3.88" | 2.50" | .063" | 2.50" | 1.66" | 2.56" | .69" | 2.50" | 0.75" | 4 |
| 1-1/2" | 1.61" | 6.12" | 4.50" | 2.88" | .063" | 2.75" | 1.90" | 2.69" | .75" | 2.63" | 0.88" | 4 |
| 2" | 2.07" | 6.50" | 5.00" | 3.62" | .063" | 3.31" | 2.38" | 2.75" | .82" | 2.69" | 0.75" | 8 |
| 2-1/2" | 2.47" | 7.50" | 5.88" | 4.12" | .063" | 3.94" | 2.88" | 3.00" | .94" | 2.94" | 0.88" | 8 |
| 3" | 3.07" | 8.25" | 6.62" | 5.00" | .063" | 4.62" | 3.50" | 3.12" | 1.06" | 3.06" | 0.88" | 8 |
| 3-1/2" | 3.55" | 9.00" | 7.25" | 5.50" | .063" | 5.25" | 4.00" | 3.19" | 1.13" | 3.13" | 0.88" | 8 |
| 4" | 4.03" | 10.00" | 7.88" | 6.19" | .063" | 5.75" | 4.50" | 3.38" | 1.19" | 3.32" | 0.88" | 8 |
| 5" | 5.05" | 11.00" | 9.25" | 7.31" | .063" | 7.00" | 5.56" | 3.88" | 1.32" | 3.82" | 0.88" | 8 |
| 6" | 6.07" | 12.50" | 10.62" | 8.50" | .063" | 8.12" | 6.63" | 3.88" | 1.38" | 3.82" | 0.88" | 12 |
| 8" | 7.98" | 15.00" | 13.00" | 10.62" | .063" | 10.25" | 8.63" | 4.38" | 1.56" | 4.32" | 1.00" | 12 |
| 10" | 10.02" | 17.50" | 15.25" | 12.75" | .063" | 12.62" | 10.75" | 4.62" | 1.82" | 4.56" | 1.12" | 16 |
| 12" | 12.00" | 20.50" | 17.75" | 15.00" | .063" | 14.75" | 12.75" | 5.12" | 1.94" | 5.06" | 1.25" | 16 |
| 14" | 13.25" | 23.00" | 20.25" | 16.25" | .063" | 16.75" | 14.00" | 5.62" | 2.06" | 5.56" | 1.25" | 20 |
| 16" | 15.25" | 25.50" | 22.50" | 18.50" | .063" | 19.00" | 16.00" | 5.75" | 2.19" | 5.69" | 1.38" | 20 |
| 18" | 17.25" | 28.00" | 24.75" | 21.00" | .063" | 21.00" | 18.00" | 6.25" | 2.32" | 6.19" | 1.38" | 24 |
| 20" | 19.25" | 30.50" | 27.00" | 23.00" | .063" | 23.12" | 20.00" | 6.38" | 2.44" | 6.32" | 1.38" | 24 |
| 22" | 21.25" | 33.00" | 29.25" | 25.25" | .063" | 25.25" | 22.00" | 6.50" | 2.57" | 6.44" | 1.62" | 24 |
| 24" | 23.25" | 36.00" | 32.0" | 27.25" | .063" | 27.62" | 24.00" | 6.62" | 2.69" | 6.56" | 1.62" | 24 |
ASME B16.5 Weld Neck Flanges Class 600
| Size | ID* | OD | Bolt Circle
(BC) |
Raised Face
(R) |
Raised Face
(RF) |
H | H1 | Raised Face
Thickness (T) |
T1 | Flat Face
Thickness (T2) |
Bolt Hole
(B) |
No. of
Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.55" | 3.75" | 2.62" | 1.38" | .250" | 1.50" | 0.84" | 2.31" | 0.56" | 2.06" | 0.62" | 4 |
| 3/4" | 0.74" | 4.62" | 3.25" | 1.69" | .250" | 1.88" | 1.05" | 2.50" | 0.62" | 2.25" | 0.75" | 4 |
| 1" | 0.96" | 4.88" | 3.50" | 2.00" | .250" | 2.12" | 1.32" | 2.69" | 0.69" | 2.44" | 0.75" | 4 |
| 1-1/4" | 1.28" | 5.25" | 3.88" | 2.50" | .250" | 2.50" | 1.66" | 2.87" | 0.81" | 2.62" | 0.75" | 4 |
| 1-1/2" | 1.50" | 6.12" | 4.50" | 2.88" | .250" | 2.75" | 1.90" | 3.00" | 0.88" | 2.75" | 0.88" | 4 |
| 2" | 1.94" | 6.50" | 5.00" | 3.62" | .250" | 3.31" | 2.38" | 3.13" | 1.00" | 2.88" | 0.75" | 8 |
| 2-1/2" | 2.32" | 7.50" | 5.88" | 4.12" | .250" | 3.94" | 2.88" | 3.37" | 1.12" | 3.12" | 0.88" | 8 |
| 3" | 2.90" | 8.25" | 6.62" | 5.00" | .250" | 4.62" | 3.50" | 3.50" | 1.25" | 3.25" | 0.88" | 8 |
| 3-1/2" | 3.36" | 9.00" | 7.25" | 5.50" | .250" | 5.25" | 4.00" | 3.63" | 1.38" | 3.38" | 1.00" | 8 |
| 4" | 3.83" | 10.75" | 8.50" | 6.19" | .250" | 6.00" | 4.50" | 4.25" | 1.5" | 4.00" | 1.00" | 8 |
| 5" | 4.81" | 13.00" | 10.50" | 7.31" | .250" | 7.44" | 5.56" | 4.75" | 1.75" | 4.50" | 1.12" | 8 |
| 6" | 5.76" | 14.00" | 11.50" | 8.50" | .250" | 8.75" | 6.63" | 4.87" | 1.88" | 4.62" | 1.12" | 12 |
| 8" | 7.63" | 16.50" | 13.75" | 10.62" | .250" | 10.75" | 8.63" | 5.50" | 2.19" | 5.25" | 1.25" | 12 |
| 10" | 9.75" | 20.00" | 17.00" | 12.75" | .250" | 13.5" | 10.75" | 6.25" | 2.50" | 6.00" | 1.38" | 16 |
| 12" | 11.75" | 22.00" | 19.25" | 15.00" | .250" | 15.75" | 12.75" | 6.37" | 2.62" | 6.12" | 1.38" | 20 |
| 14" | 13.00" | 23.75" | 20.75" | 16.25" | .250" | 17.00" | 14.00" | 6.75" | 2.75" | 6.50" | 1.50" | 20 |
| 16" | 15.00" | 27.00" | 23.75" | 18.50" | .250" | 19.50" | 16.00" | 7.25" | 3.00" | 7.00" | 1.62" | 20 |
| 18" | 17.00" | 29.25" | 25.75" | 21.00" | .250" | 21.50" | 18.00" | 7.50" | 3.25" | 7.25" | 1.75" | 20 |
| 20" | 19.00" | 32.00" | 28.50" | 23.00" | .250" | 24.00" | 20.00" | 7.75" | 3.50" | 7.50" | 1.75" | 24 |
| 22" | 21.00" | 34.25" | 30.63" | 25.25" | .250" | 26.25" | 22.00" | 8.00" | 3.75" | 7.75" | 1.75" | 24 |
| 24" | 23.00" | 37.00" | 33.00" | 27.25" | .250" | 28.25" | 24.00" | 8.25" | 4.00" | 8.00" | 2.00" | 24 |
ASME B16.5 Weld Neck Flanges Class 900
| Size | ID* | OD | Bolt Circle
(BC) |
Raised Face
(R) |
Raised Face
(RF) |
H | H1 | Raised Face
Thickness (T) |
T1 | Flat Face
Thickness (T2) |
Bolt Hole
(B) |
No. of
Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 2.90" | 9.50" | 7.50" | 5.00" | .250" | 5.00" | 3.50" | 4.25" | 1.50" | 4.00" | 1.00" | 8 |
| 4" | 3.83" | 11.50" | 9.25" | 6.19" | .250" | 6.25" | 4.50" | 4.75" | 1.75" | 4.50" | 1.25" | 8 |
| 5" | 4.81" | 13.75" | 11.00" | 7.31" | .250" | 7.50" | 5.56" | 5.25" | 3.00" | 5.00" | 1.38" | 8 |
| 6" | 5.76" | 15.00" | 12.50" | 8.50" | .250" | 9.25" | 6.63" | 5.75" | 2.19" | 5.50" | 1.25" | 12 |
| 8" | 7.63" | 18.50" | 15.50" | 10.63" | .250" | 11.75" | 8.63" | 6.63" | 2.50" | 6.38" | 1.50" | 12 |
| 10" | 9.75" | 21.50" | 18.50" | 12.75" | .250" | 14.50" | 10.75" | 7.50" | 2.75" | 7.25" | 1.50" | 16 |
| 12" | 11.75" | 24.00" | 21.00" | 15.00" | .250" | 16.50" | 12.75" | 8.13" | 3.13" | 7.88" | 1.50" | 20 |
| 14" | 13.00" | 25.25" | 22.00" | 16.25" | .250" | 17.75" | 14.00" | 8.63" | 3.38" | 8.38" | 1.63" | 20 |
| 16" | 15.00" | 27.75" | 24.25" | 18.50" | .250" | 20.00" | 16.00" | 8.75" | 3.50" | 8.50" | 1.75" | 20 |
| 18" | 17.00" | 31.00" | 27.00" | 21.00" | .250" | 22.25" | 18.00" | 9.25" | 4.00" | 9.00" | 2.00" | 20 |
| 20" | 19.00" | 33.75" | 29.50" | 23.00" | .250" | 24.50" | 20.00" | 10.00" | 4.25" | 9.75" | 2.13" | 20 |
| 24" | 23.00" | 41.00" | 35.50" | 27.25" | .250" | 29.50" | 24.00" | 11.75" | 5.50" | 11.50" | 2.63" | 20 |
ASME B16.5 Weld Neck Flanges Class 1500
| Size | ID* | OD | Bolt Circle
(BC) |
Raised Face
(R) |
Raised Face
(RF) |
H | H1 | Raised Face
Thickness (T) |
T1 | Flat Face
Thickness (T2) |
Bolt Hole
(B) |
No. of
Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.55" | 4.75" | 3.25" | 1.38" | .250" | 1.50" | 0.84" | 2.63" | 0.88" | 2.38" | 0.88" | 4 |
| 3/4" | 0.74" | 5.13" | 3.50" | 1.69" | .250" | 1.75" | 1.05" | 3.00" | 1.00" | 2.75" | 0.88" | 4 |
| 1" | 0.96" | 5.88" | 4.00" | 2.00" | .250" | 2.06" | 1.32" | 3.13" | 1.13" | 2.88" | 1.00" | 4 |
| 1-1/4" | 1.28" | 6.25" | 4.38" | 2.50" | .250" | 2.50" | 1.66" | 3.13" | 1.13" | 2.88" | 1.00" | 4 |
| 1-1/2" | 1.50" | 7.00" | 4.88" | 2.88" | .250" | 2.75" | 1.90" | 3.50" | 1.25" | 3.25" | 1.13" | 4 |
| 2" | 1.94" | 8.50" | 6.50" | 3.63" | .250" | 4.13" | 2.38" | 4.25" | 1.50" | 4.00" | 1.00" | 8 |
| 2-1/2" | 2.32" | 9.63" | 7.50" | 4.13" | .250" | 4.88" | 2.88" | 4.38" | 1.63" | 4.13" | 1.13" | 8 |
| 3" | 2.90" | 10.50" | 8.00" | 5.00" | .250" | 5.25" | 3.50" | 4.88" | 1.88" | 4.63" | 1.25" | 8 |
| 4" | 3.83" | 12.25" | 9.50" | 6.19" | .250" | 6.38" | 4.50" | 5.13" | 2.13" | 4.88" | 1.38" | 8 |
| 5" | 4.81" | 14.75" | 11.50" | 7.31" | .250" | 7.75" | 5.56" | 6.38" | 2.88" | 6.13" | 1.63" | 8 |
| 6" | 5.76" | 15.50" | 12.50" | 8.50" | .250" | 9.00" | 6.63" | 7.00" | 3.25" | 6.75" | 1.50" | 12 |
| 8" | 7.63" | 19.00" | 15.50" | 10.63" | .250" | 11.50" | 8.63" | 8.63" | 3.63" | 8.38" | 1.75" | 12 |
| 10" | 9.75" | 23.00" | 19.00" | 12.75" | .250" | 14.50" | 10.75" | 10.25" | 4.25" | 10.00" | 2.00" | 12 |
| 12" | 11.75" | 26.50" | 22.50" | 15.00" | .250" | 17.75" | 12.75" | 11.38" | 4.88" | 11.13" | 2.13" | 16 |
| 14" | 13.00" | 29.50" | 25.00" | 16.25" | .250" | 19.50" | 14.00" | 12.00" | 5.25" | 11.75" | 2.38" | 16 |
| 16" | 15.00" | 32.50" | 27.75" | 18.50" | .250" | 21.75" | 16.00" | 12.50" | 5.75" | 12.25" | 2.63" | 16 |
| 18" | 17.00" | 36.00" | 30.50" | 21.00" | .250" | 23.50" | 18.00" | 13.13" | 6.38" | 12.88" | 2.88" | 16 |
| 20" | 19.00" | 38.75" | 32.75" | 23.00" | .250" | 25.25" | 20.00" | 14.25" | 7.00" | 14.00" | 3.13" | 16 |
| 24" | 23.00" | 46.00" | 39.00" | 27.25" | .250" | 30.00" | 24.00" | 16.25" | 8.00" | 16.00" | 3.63" | 16 |
ASME B16.5 Weld Neck Flanges Class 2500
| Size | ID* | OD | Bolt Circle
(BC) |
Raised Face
(R) |
Raised Face
(RF) |
H | H1 | Raised Face
Thickness (T) |
T1 | Flat Face
Thickness (T2) |
Bolt Hole
(B) |
No. of
Bolt Holes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 0.55" | 5.25" | 3.50" | 1.38" | .250" | 1.69" | 0.84" | 3.13" | 1.19" | 2.88" | 0.88" | 4 |
| 3/4" | 0.74" | 5.50" | 3.75" | 1.69" | .250" | 2.00" | 1.05" | 3.38" | 1.25" | 3.13" | 0.88" | 4 |
| 1" | 0.96" | 6.25" | 4.25" | 2.00" | .250" | 2.25" | 1.32" | 3.75" | 1.38" | 3.50" | 1.00" | 4 |
| 1-1/4" | 1.28" | 7.25" | 5.13" | 2.50" | .250" | 2.88" | 1.66" | 4.00" | 1.50" | 3.75" | 1.13" | 4 |
| 1-1/2" | 1.50" | 8.00" | 5.75" | 2.88" | .250" | 3.13" | 1.90" | 4.63" | 1.75" | 4.38" | 1.25" | 4 |
| 2" | 1.94" | 9.25" | 6.75" | 3.63" | .250" | 3.75" | 2.38" | 5.25" | 2.00" | 5.00" | 1.13" | 8 |
| 2-1/2" | 2.32" | 10.50" | 7.75" | 4.13" | .250" | 4.50" | 2.88" | 5.88" | 2.25" | 5.63" | 1.25" | 8 |
| 3" | 2.90" | 12.00" | 9.00" | 5.00" | .250" | 5.25" | 3.50" | 6.88" | 2.63" | 6.63" | 1.38" | 8 |
| 4" | 3.83" | 14.00" | 10.75" | 6.19" | .250" | 6.50" | 4.50" | 7.75" | 3.00" | 7.50" | 1.63" | 8 |
| 5" | 4.81" | 16.50" | 12.75" | 7.31" | .250" | 8.00" | 5.56" | 9.25" | 3.63" | 9.00" | 1.88" | 8 |
| 6" | 5.76" | 19.00" | 14.50" | 8.50" | .250" | 9.25" | 6.63" | 11.00" | 4.25" | 10.75" | 2.13" | 8 |
| 8" | 7.63" | 21.75" | 17.25" | 10.63" | .250" | 12.00" | 8.63" | 12.75" | 5.00" | 12.50" | 2.13" | 12 |
| 10" | 9.75" | 26.50" | 21.25" | 12.75" | .250" | 14.75" | 10.75" | 16.75" | 6.50" | 16.50" | 2.63" | 12 |
| 12" | 11.75" | 30.00" | 24.38" | 15.00" | .250" | 17.38" | 12.75" | 18.50" | 7.25" | 18.25" | 2.88" | 12 |
| Price List | |
| B16.5-Welding-Neck-150lb-300lb-600lb-900lb-1500lb-2500lb Weld Neck Flanges | US / Metric Ton (FOB Price) on request |
| B16.5-Welding-Neck-150lb-300lb-600lb-900lb-1500lb-2500lb Weld Neck Flanges | US / Metric Ton (FOB Price) on request |
| B16.5-Welding-Neck-150lb-300lb-600lb-900lb-1500lb-2500lb Weld Neck Flanges | US / Metric Ton (FOB Price) on request |
| B16.5-Welding-Neck-150lb-300lb-600lb-900lb-1500lb-2500lb Weld Neck Flanges | US / Metric Ton (FOB Price) on request |
| Preview | Products | UNS | DIN |
|---|---|---|---|
 |
Stainless Steel Weld Neck Flanges | UNS S30400, S30403, S31600, S31603 Weld Neck Flanges | 1.4301, 1.4306, 1.4401, 1.4404 Weld Neck Flanges |
 |
Duplex / Super Duplex Steel Weld Neck Flanges | UNS S31803, S32205, SAF-2205, S32750, S32760, SAF-2507 Weld Neck Flanges | 1.4462, 1.4410 Weld Neck Flanges |
 |
Copper Nickel Weld Neck Flanges | UNS C70600, C71500 Weld Neck Flanges | 2.0872, 2.0882 Weld Neck Flanges |
 |
Alloy Steel Weld Neck Flanges | UNS K41545, K90941, K11597, K21590 Weld Neck Flanges | 1.7362, 1.7386, 1.7335, 1.7380 Weld Neck Flanges |
| American Steel Weld Neck Flanges Standard | |
| Standard Code | Standard Name |
| ANSI ASME SA-182 | Weld Neck Flanges |
| ANSI ASME B16.5 | Weld Neck Flanges , sortj, soff, rfso flange |
| ASME – B 16.36 | Weld Neck Flanges |
We make sure that our every product is made of high quality raw material. We thoroughly test each and every product before dispatching it to our customers. one of the most trusted manufacturers and suppliers of fasteners and bolts which are applicable in various industries.
- Power Generation Industries
- Food Processing Industries
- Oil & Gas Industries
- Sugar Industries
- Petrochemical Industries
We known for its accurate and perfect dimensions. We thoroughly test all our products before shipping them to the customers. We carry out destructive as well as non-destructive tests on all our products.
- Eddy Current Examining
- Power Generation Industries
- Hydrostatic Analysis
- Positive Material Recognition
- Pitting Protection Test
We uses the most safest and the most effective ways of packaging for all types of deliveries. We pack our goods in various ways such as:
- Wooden Boxes
- Wooden Pallets
- Shrink-Wrapped
- Carton Boxes
- Wooden Boxes
Jamshedpur, Rajkot, Lahore, Geoje-si, Jakarta, Kolkata, Gimhae-si, Vung Tau, Karachi, Istanbul, Manama, Kuwait City, Howrah, Hanoi, Hong Kong, New Delhi, Calgary, Ranchi, Muscat, Hyderabad, Mumbai, Moscow, Kuala Lumpur, Nashik, Busan, Ho Chi Minh City, Singapore, Aberdeen, Algiers, Cairo, Chandigarh, Dallas, Milan, Ahmedabad, Houston, Ulsan, Visakhapatnam, Colombo, New York, Chennai, Toronto, Brisbane, Petaling Jaya, Jaipur, Navi Mumbai, Atyrau, Jeddah, Secunderabad, Kanpur, Gurgaon, Bangkok, Indore, Rio de Janeiro, Montreal, Al Khobar
Poland, Thailand, Gabon, India, Tibet, Australia, Nigeria, Angola, Sri Lanka, Libya, Hong Kong, Mexico, Kuwait, Switzerland, Bhutan, Bulgaria, Nepal, Singapore, China, Kenya, Croatia, Japan, Sweden, Trinidad & Tobago,Tunisia, Egypt, France, Bolivia, Peru, Mexico, United Kingdom, Austria, Portugal, United Arab Emirates, Jordan, Ecuador, Nigeria, Chile, Czech Republic, Philippines, Iran, Chile, Netherlands, Canada, Namibia, Norway, Puerto Rico, Yemen, Romania, Mongolia, Brazil, Costa Rica, South Korea, Finland, Lithuania, Italy, Qatar, Colombia, Russia, Lebanon
